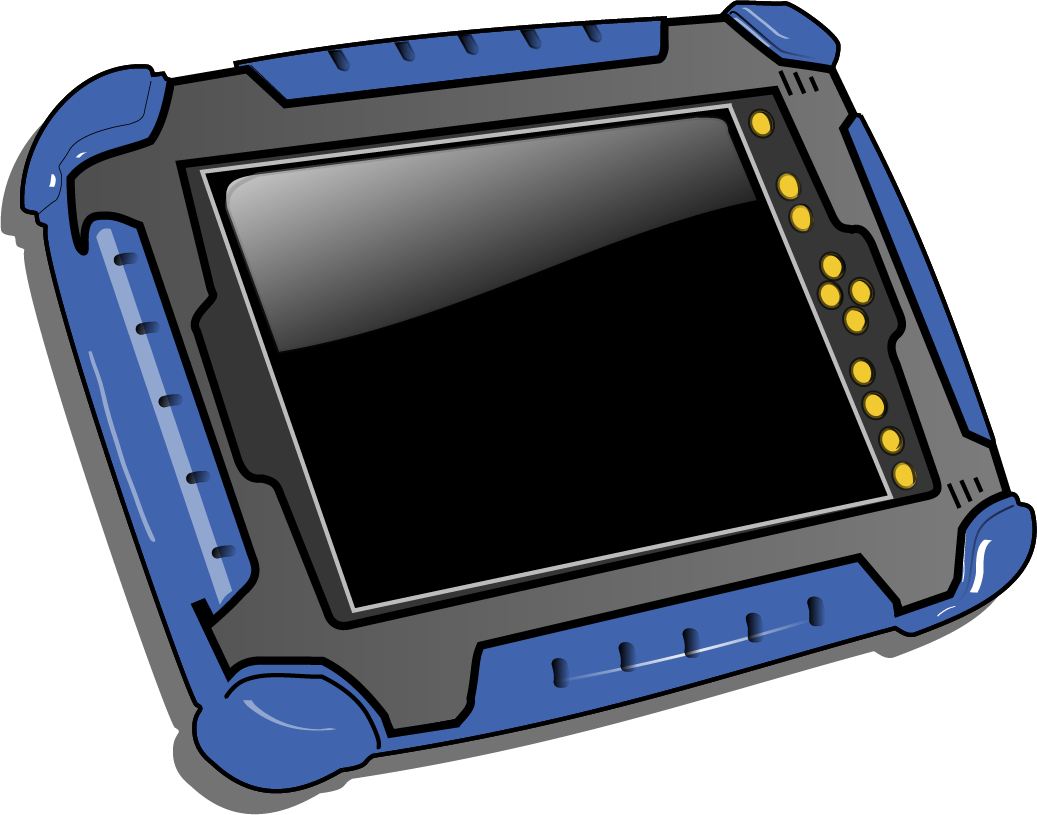

ANDROID TABLET

Description

Industrial Android Tablets combine the user-friendly features of Android with rugged durability, representing a significant technological advancement that enhances efficiency and productivity in demanding industrial environments.

Features

• Processor - The RZ/G2L microprocessor includes a Dual Core - Cortex®-A55 (1.2GHz) CPU
• Memory –

- eMMC – 64GB / 128GB

- DDR4 – 4GB / 8GB

• SD CARD
• Display – 5.5” 720 X 1280 / 7” 800 X 1280, CTP
• HDMI Output
• Camera – MIPI interface
• Audio Codec – DA7218
• Power – main battery: li-ion, rechargeable, 8000 mAh
• USB PD fast charging with Dual Cell Battery
• High Brightness Automotive Grade TFT with Cover Glass
• Interface – 4 ports USB 2.0 Type-C, OTG
• Navigation – GPS (RTK/DR) LC29HDA
• Communication:

- Isolated RS485

- Isolated RS232

- Isolated SPI

- Isolated CAN

• Connectivity:

- 10/100 ethernet (IC Plus)

- Quectel LTE (EC200U)

- Wi-Fi + BLE (FCM360W)

• Sensors:

- Accelero/gyro

- Temperature/humidity

- ALS

• Secure – NFC receiver - PTX100R NFC Reader IC, EMVCo® 3.0/3.1 PCD L1 compliancy2
• Front Camera: 5MP
• Rear Camera: 13MP
• Inbuilt QR CODE READER: Zebra SE4710 - 1D,2D/QR Codes (including AADHAAR).
• LORA Connectivity

Applications

• Inventory management
• Asset management
• Health and safety monitoring.
• Real-time communication

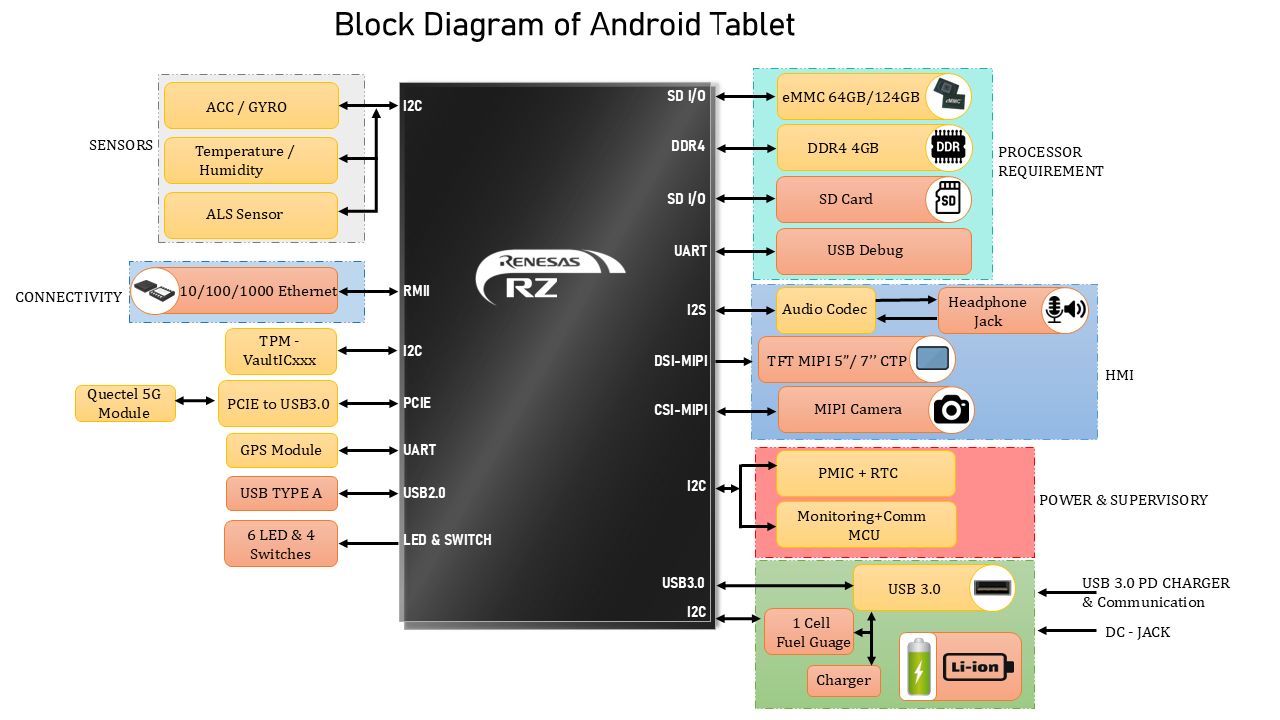

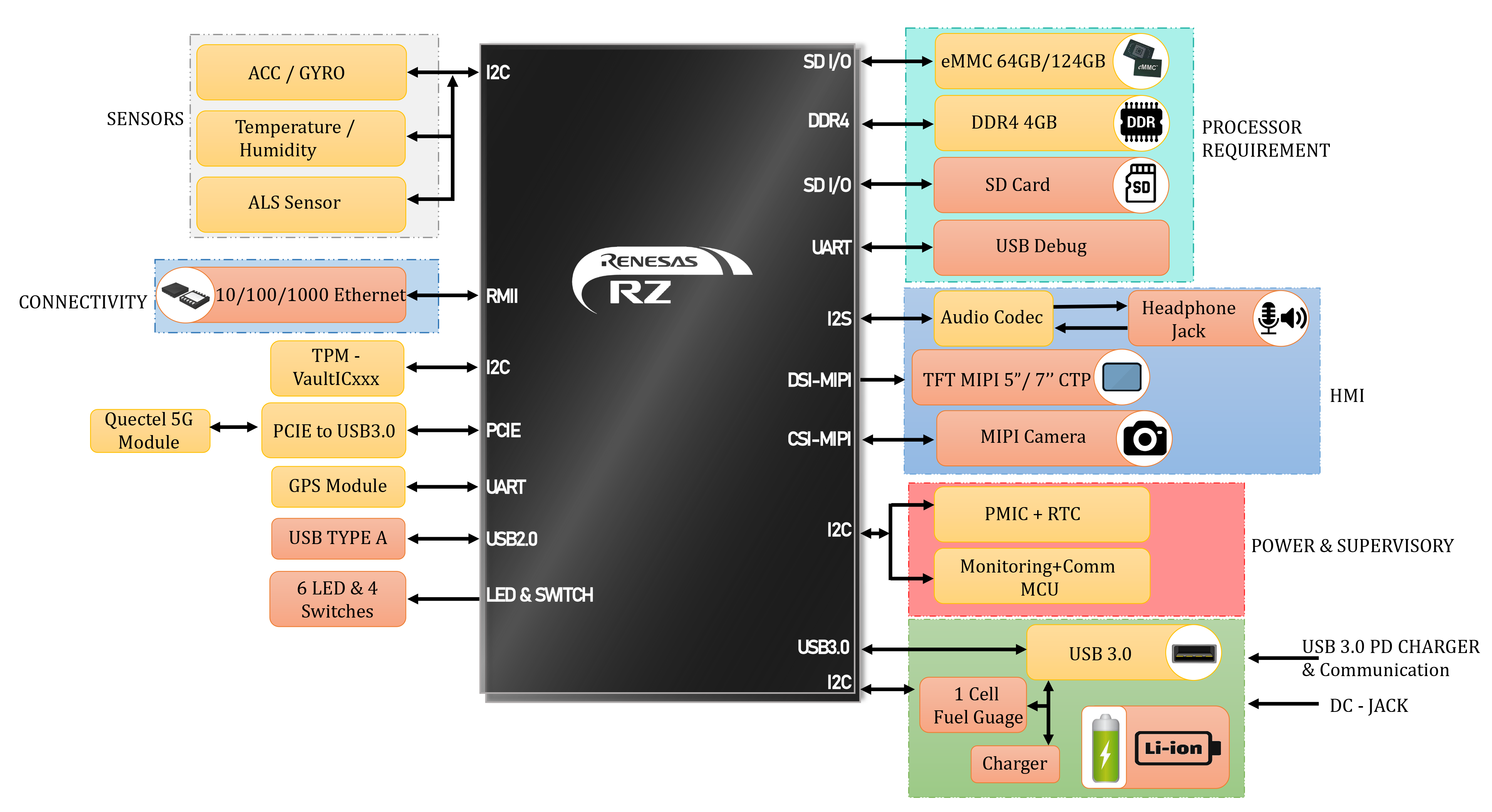

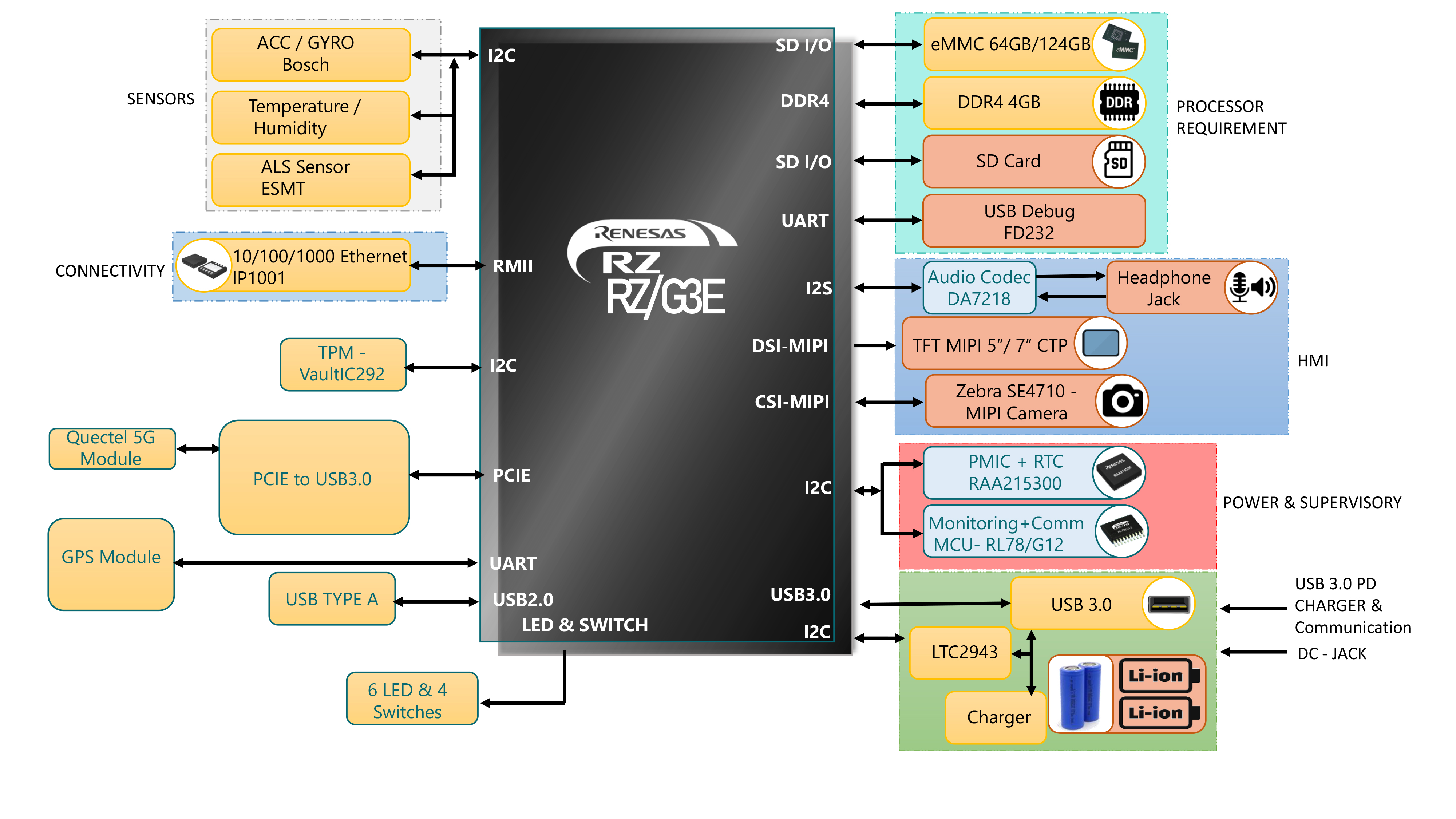

Block Diagram
