Tarjani Module


Tarjani Module Was Used For POC For Aadhaar- L1 Application To Support PCH Certification For Renesas Synergy Controller.


  • USB Powered
  • Reliable Capturing Performance
  • Sleek And Stable Design
  • High-Quality Certified FMR Extractor
  • S5D9 – R7FS5D97C2A01CBG#AC0,176-Pin BGA package,120 MHz Arm® Cortex®-M4 core with Floating

   Point Unit (FPU),640 KB SRAM,1MB Code Flash Memory,8 Kb Data Flash Memory.

  • Build around BIOSEC capacitive area sensor with array 365 by 256
  • Support for USB-2.0 (HS/FS) For Easy Connectivity
  • Compatible with Various HOST-Environment: Linux, MS-Windows, iOS and Android
  • 508 dpi (256 x 365 pixels), 256 Gray Level Sensor
  • Hardware Encryption Support @ RSA-2048 bit Key-Generation and AES-256 bit
  • Secured With No-availability For JTAG Interface (Hardware Disabled)
  • Secure Updates Only Available Via Secure Boot-loader After Authentication

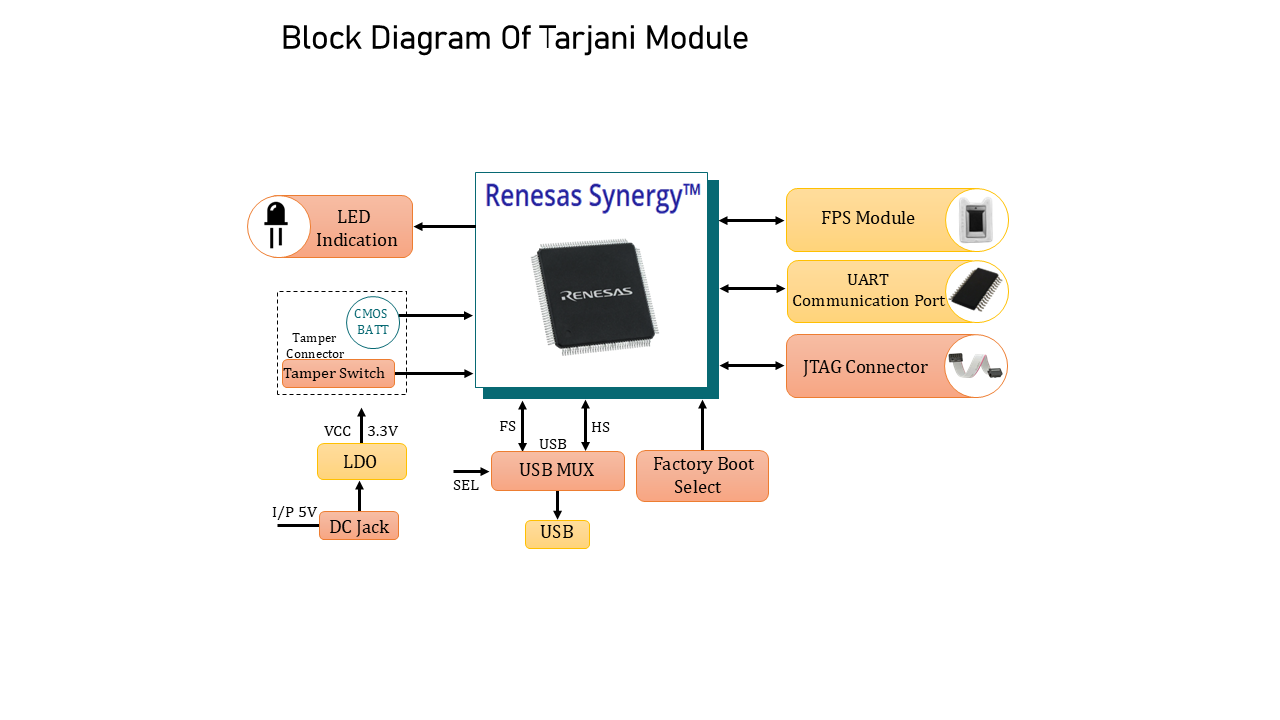

Block Diagram
