KEY FOB


Description

One of the primary functions of a BLE key fob is to remotely lock and unlock the two-wheeler's ignition or steering lock, providing a convenient way to secure the vehicle without needing to insert a physical key.


Features

  • Dialog DA14531 low energy BLE5.0 module
  • Battery: CR2032
  • Lifetime: 2 years
  • Frequency: 2402/2426/2480 Mhz
  • Broadcasting protocol: iBeacon
  • Broadcasting interval: programmable
  • Broadcasting power: 0DBm as default, programmable
  • Antenna: PCB
  • Distance: <50meter
  • Working power supply: 1.7 ~3.6V DC

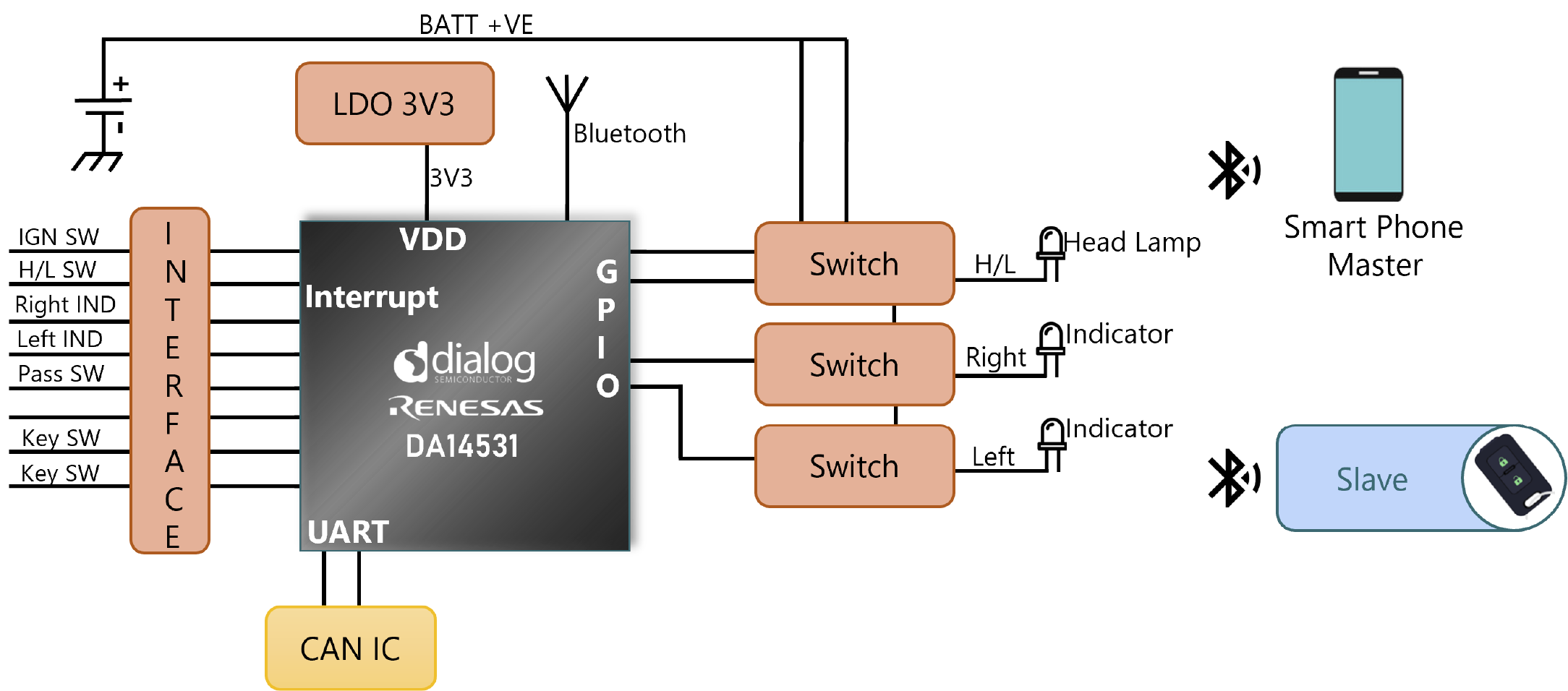

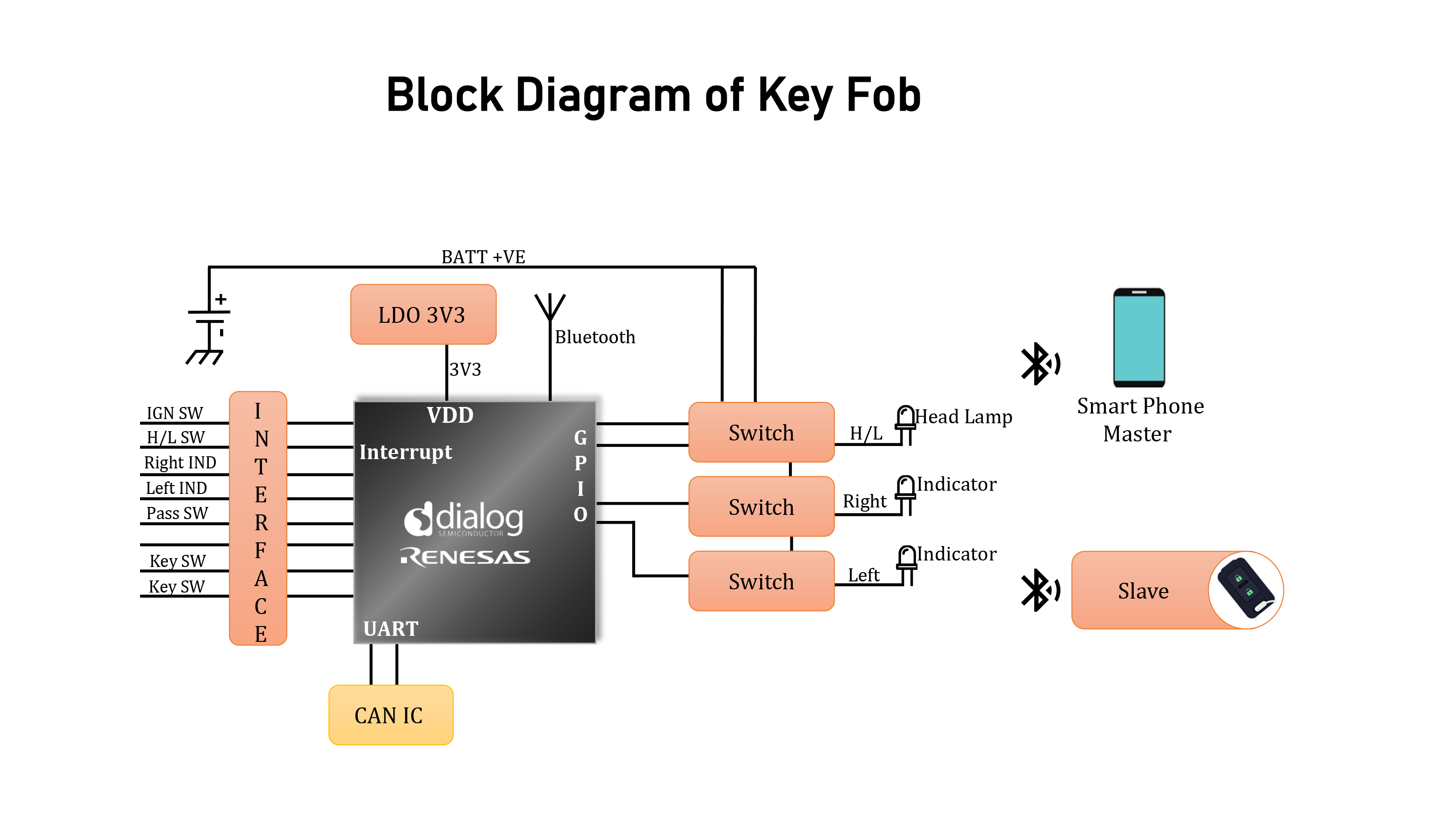

Block Diagram
