RA6M3 MCU / TFT CLUSTER

Description

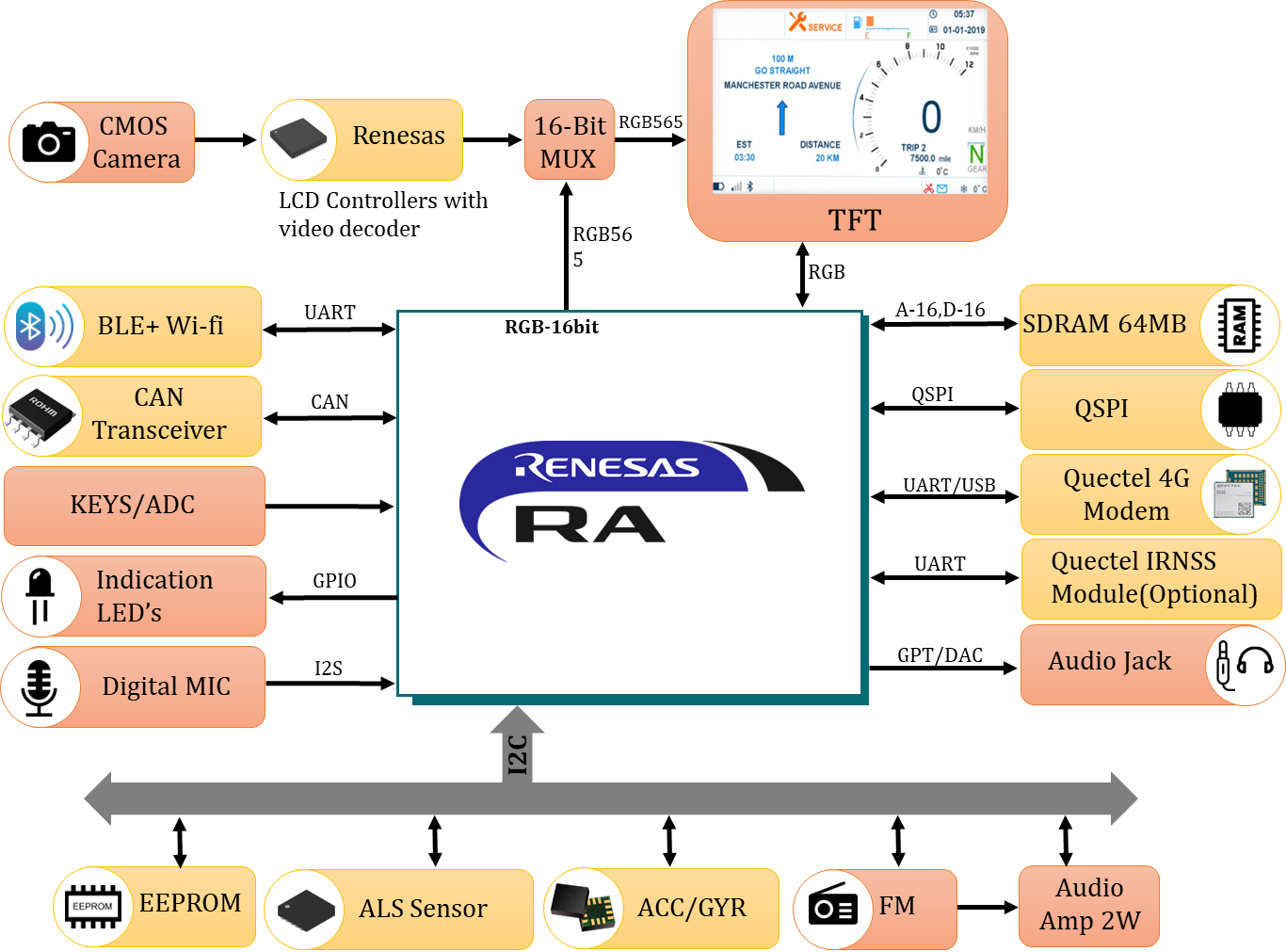

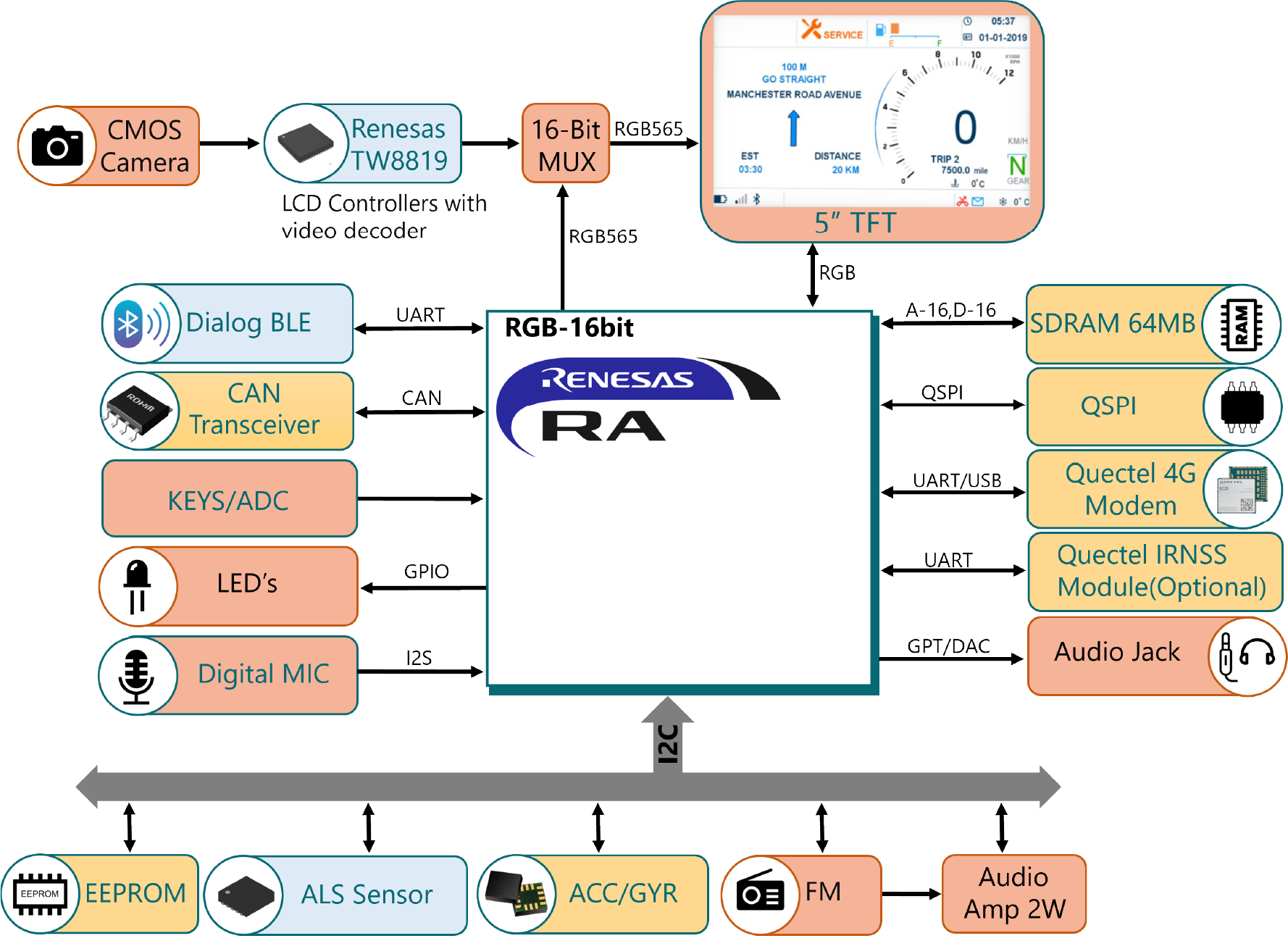

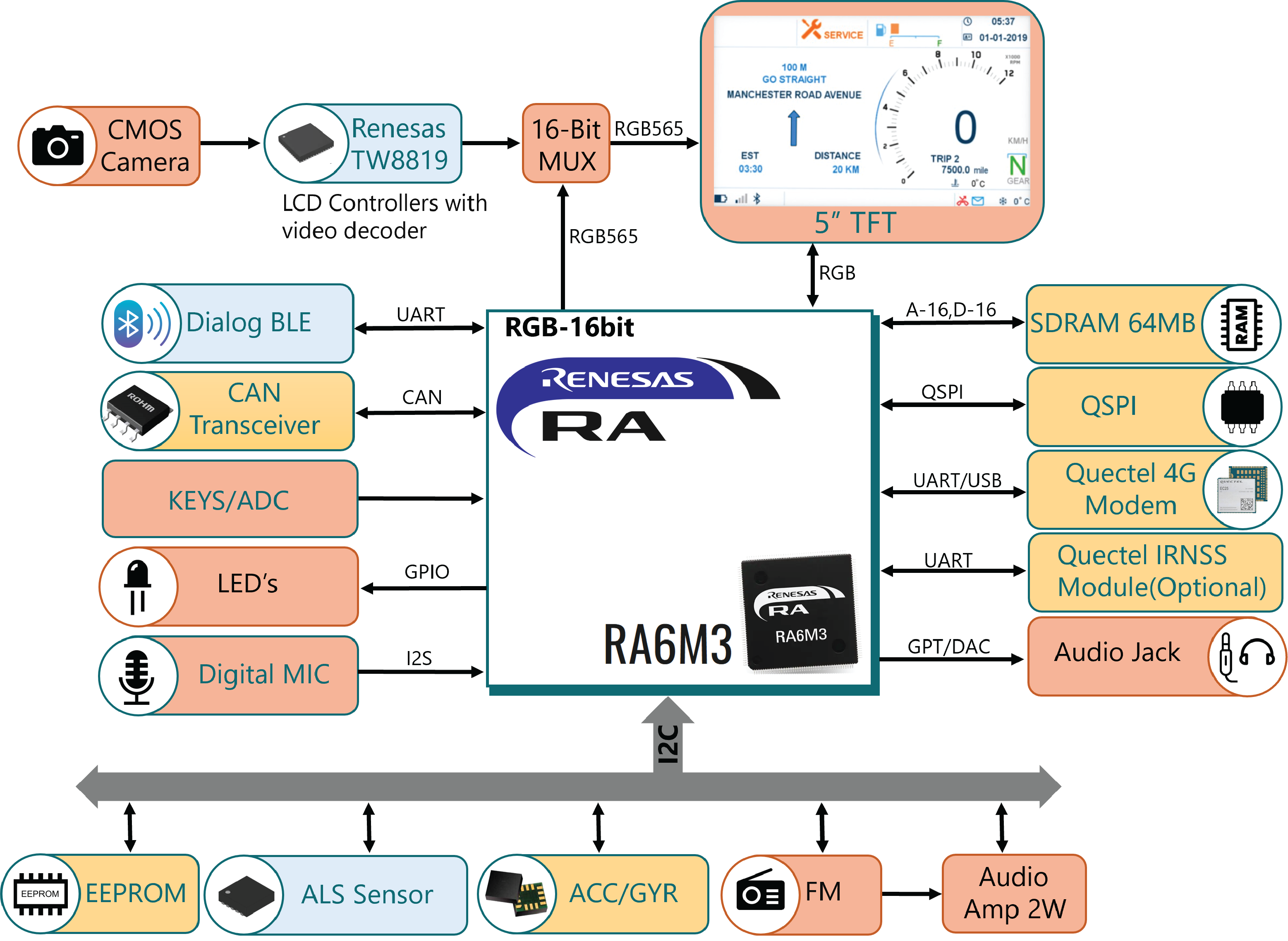

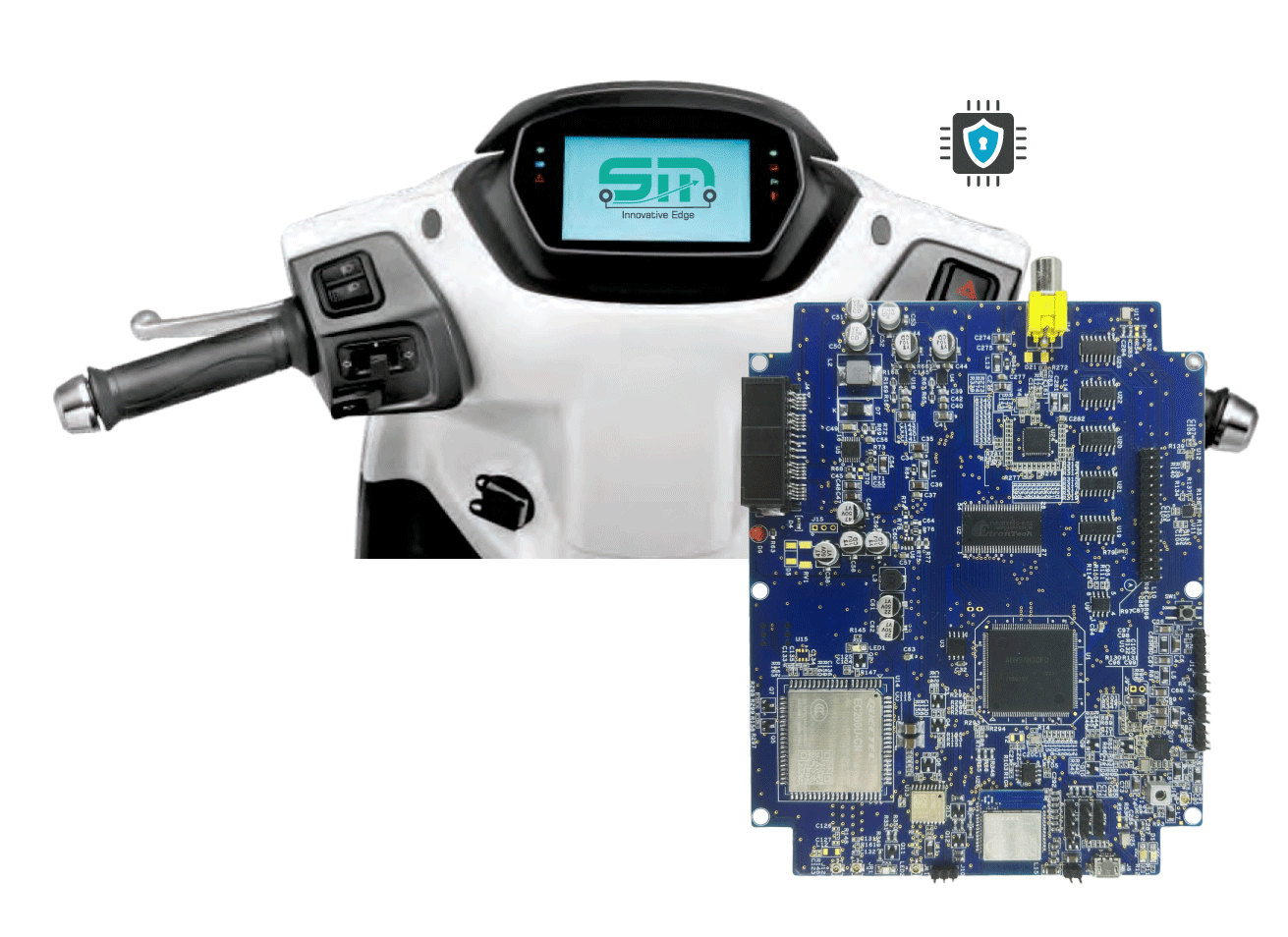

The 2‑wheeler Smart Cluster integrates advanced technology, connectivity, and intelligent functionalities to deliver an enriched riding experience. Designed around the RA6M3 microcontroller, this smart cluster includes wireless connectivity for seamless communication with smartphones.

It provides essential vehicle information, multiple connectivity options, and safety‑enhancing features within a streamlined and user‑friendly interface specifically tailored for motorcycles. By combining modern electronics with smart functionality, the system transforms a traditional instrument cluster into a fully connected smart cluster.

Features:

1. MCU

MCU	Renesas RA6M3-176Pin 2MB Flash/640KB RAM/64KB Data Flash
CORE	CortexM4

2. Connectivity

BLUETOOTH	Dialog DA14531-BT5.1
GSM	Quectel LTEModule
GNSS	GPS GLONASS or GPSIRNSS

3. Hardware

TFT	5" TFT 800 X 480
MEMORY	SDRAM - 64MBytes, QSPI Flash 64MB
DISPLAY	16bit RGB
GSM INTERFACE	UART
CAMERA	1Ch - Analog Composite Video Inputs
RPS	RPS - Rear Vision Video Display For Reverse Parking
CAN (BD41041FJ)	AEC-Q100 Qualified Transmission Rate of 40kbps to 1Mbps
BLUETOOTH	UART Interface
GYRO & ACCELEROMETER (LSM6DS3TR)	16-bit Digital Triaxial Accelerometer And Gyro Sensor
ALS	Ambient Light Sensor with IR LED
USIM	x2, Support 1.8/2.95V (U)SIM Cards, with (U)SIM Card Detection Function

4. Software

Renesas:IDEE2Studio/E2Studio,AzureRTOS,FREERTOS

GUI: Sparklite, GUIX, Seggerwin
