Linux Handheld POS



Description

It Is A Portable Device Used For Processing Transactions In Various Retail And Hospitality Industries Which offers greater Flexibility, Improved Efficiency, Enhanced Security. The Linux Operating System is a Stable And Secure Environment For Developing POS Software And Applications. Linux-based POS Is Highly Customizable And Lower Costs Compared To Proprietary Operating Systems.


Features

  • Renesas RZA1H Based Microprocessor
  • 128x64 OLED Display
  • RX651 Based Thermal Pinter
  • 30 User Defined Keys
  • Mi-Fare RFID Card Reader
  • 64MB QSPI for Linux and 64MB QSPI for Storage
  • 64MB SDRAM, External RTC with Alarm Support
  • Battery Powered with 7.4v/3000mAh Battery
  • Quectel based 4G Modem Interface with Micro SIM Support


Applications

  • Retail Stores
  • Healthcare Facilities
  • Transportation / Ticketing
  • Payment Collection

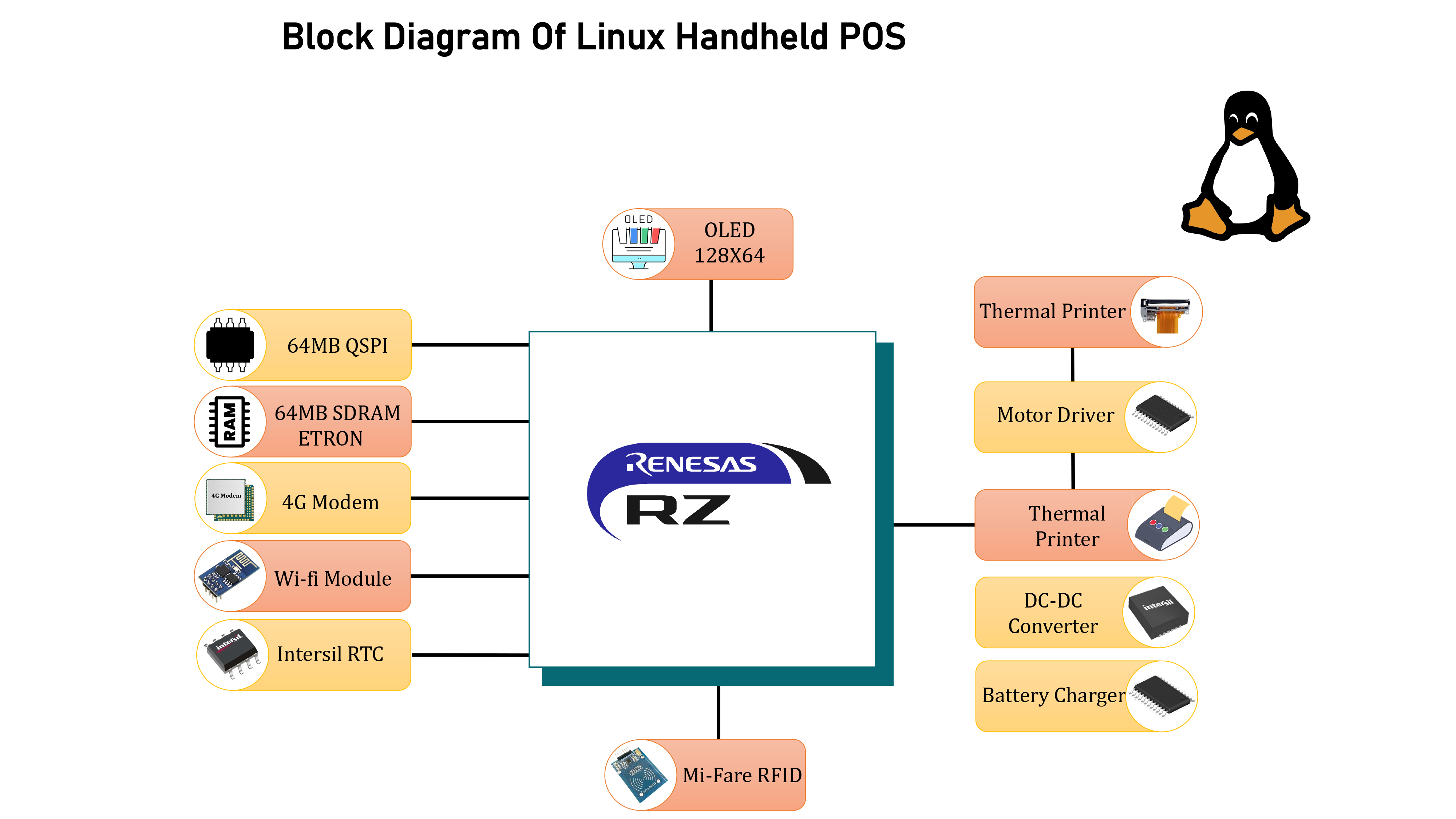

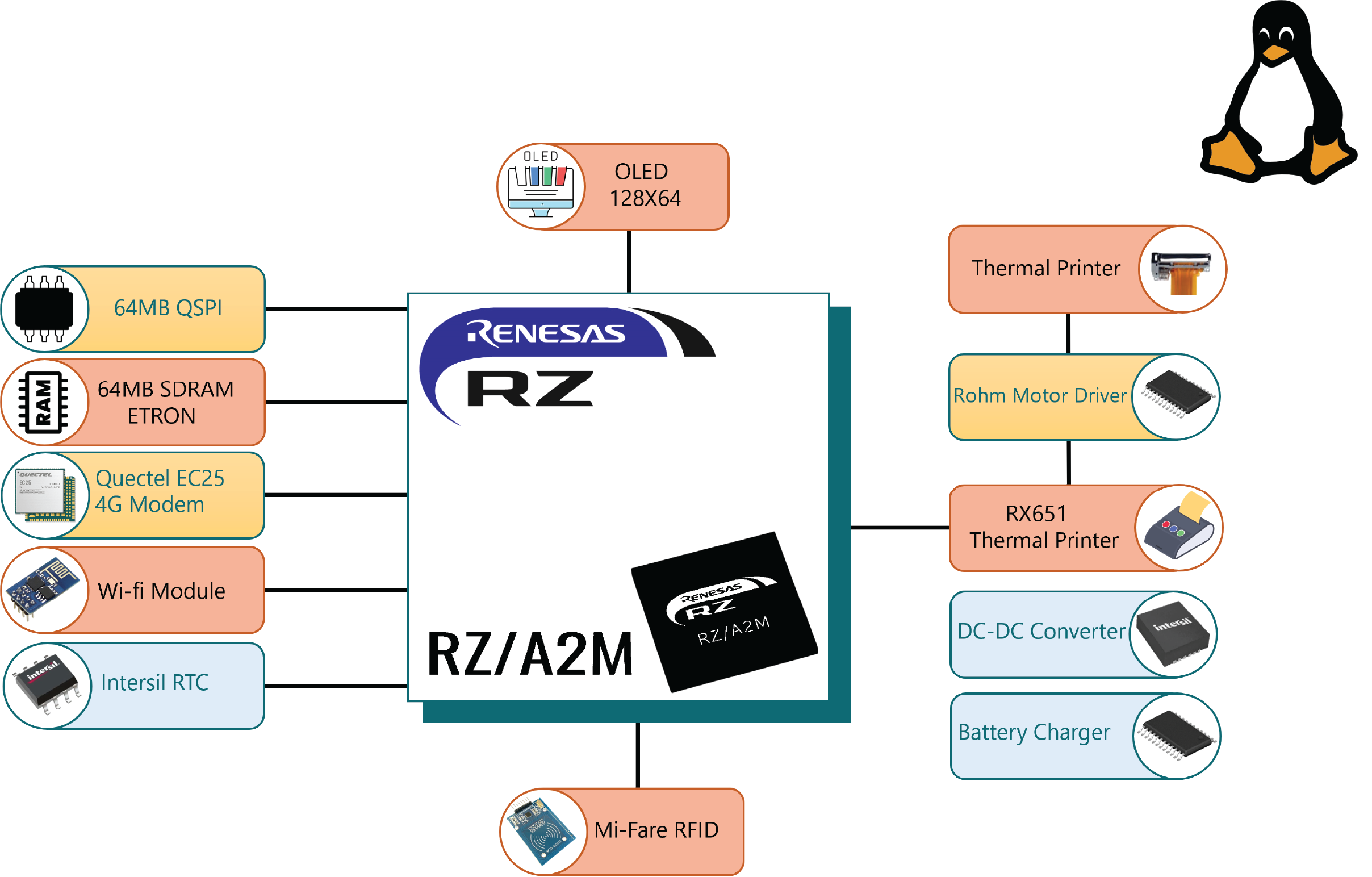

Block Diagram
