FPS EVK MODULE

Description

The Tarjani – Evaluation Kit (EVK) V1 enables developers to get started with initial firmware development for finger print sensor (FPS) L1 certification. The major components of EVK – V1 consists of Renesas microcontroller and Biosec FPS Module enabled for multiple sensor interface (i.e SPI, PDC and parallel port).

Features

  • S5D9 – R7FS5D97C2A01CBG#AC0
  • 176-Pin BGA package
  • 120 MHz Arm® Cortex®-M4 core with Floating Point Unit (FPU)
  • 1MB code flash memory, 8 KB data flash memory
  • 2D capacitive fingerprint area sensor
  • Sensor array of 360 by 256 pixels
  • 508 DPI spatial resolution
  • Image capture speed up to 2 MPixel/sec
  • Low power : Normal and Standby modes
  • 30 million finger placement

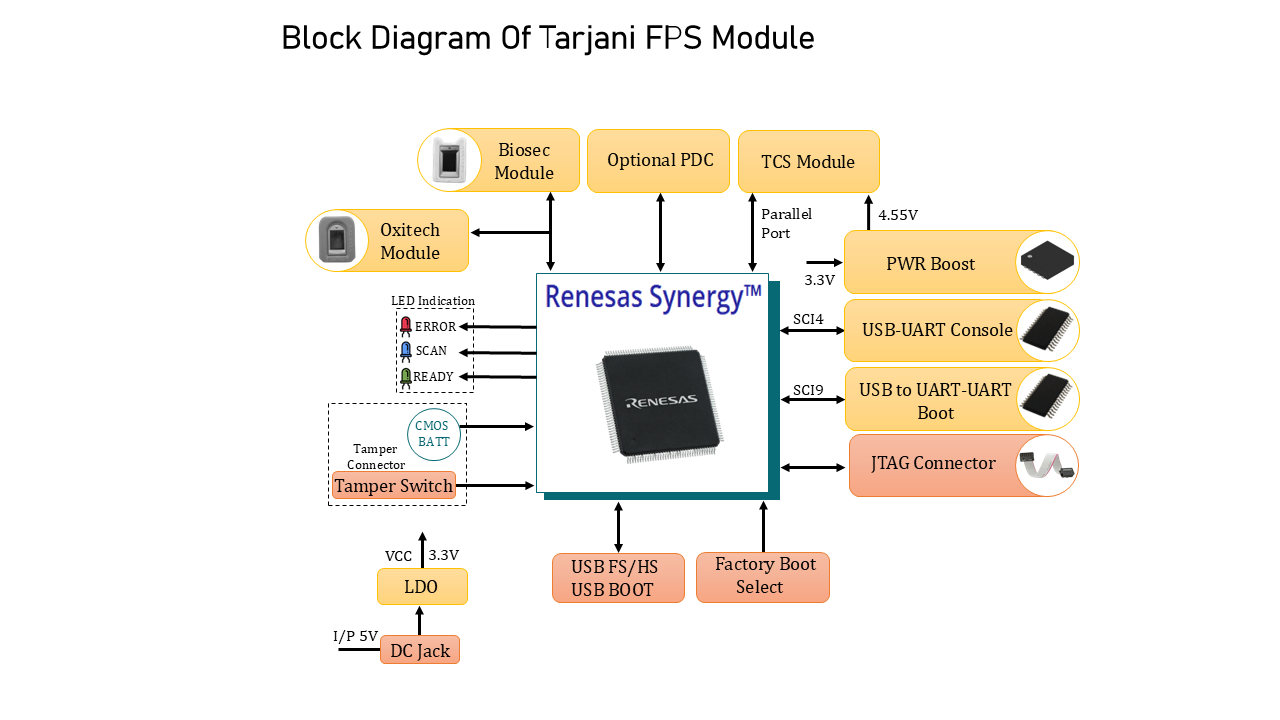

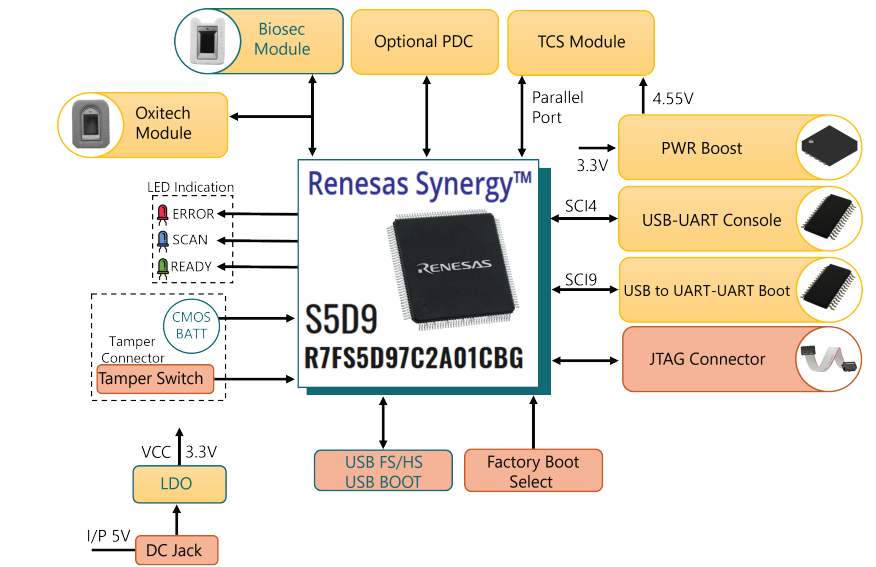

Block Diagram
