USB PD CHARGER



Description

It Is A PD charger which Supports Multiple fast charge protocol Standards with Dual Type-C Output Ports and Dual USB Type-A Output Ports.


Features

1. Input Voltage: 8.3V~31V

  • Operating Range: 3V~20V
  • Line Compensate: 50mV/A
  • Supports CV/CC Output Mode
  • Efficiency: 96.4%
  • Support Dual Ports: Type-C or Dual Type-A


2. Type-C Protocol Output Port

  • Output Voltage: 5V,9V,12V,15V,20V
  • Supports PD2.0/3,0(PPS) Output Protocol
  • Supports PPS Voltage: 3.3~21V With 20mV/step Output


3. Fast Charge Output Of Dual Type-C and Dual USB A Ports

  • Supports Dual Type-A and Type-C
  • Supports Dual O/P Type-A and Type-C Respectively
  • Protocol Supports
  • BC 1.2, QC 3.0, and QC 2.0
  • Fast Charging, Samsung, Oppo, Apple, FCP and SCP

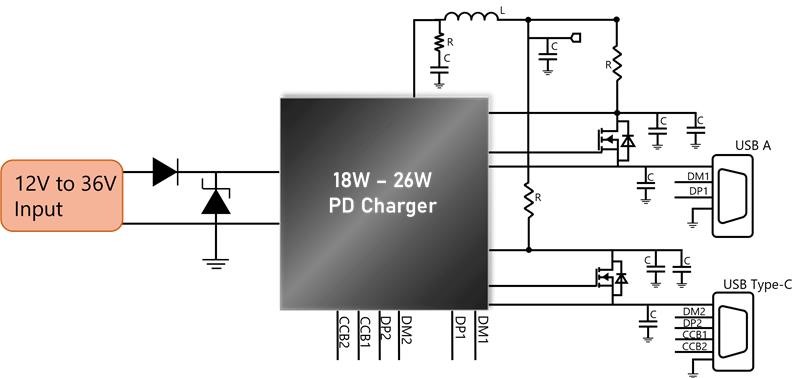

Block Diagram
