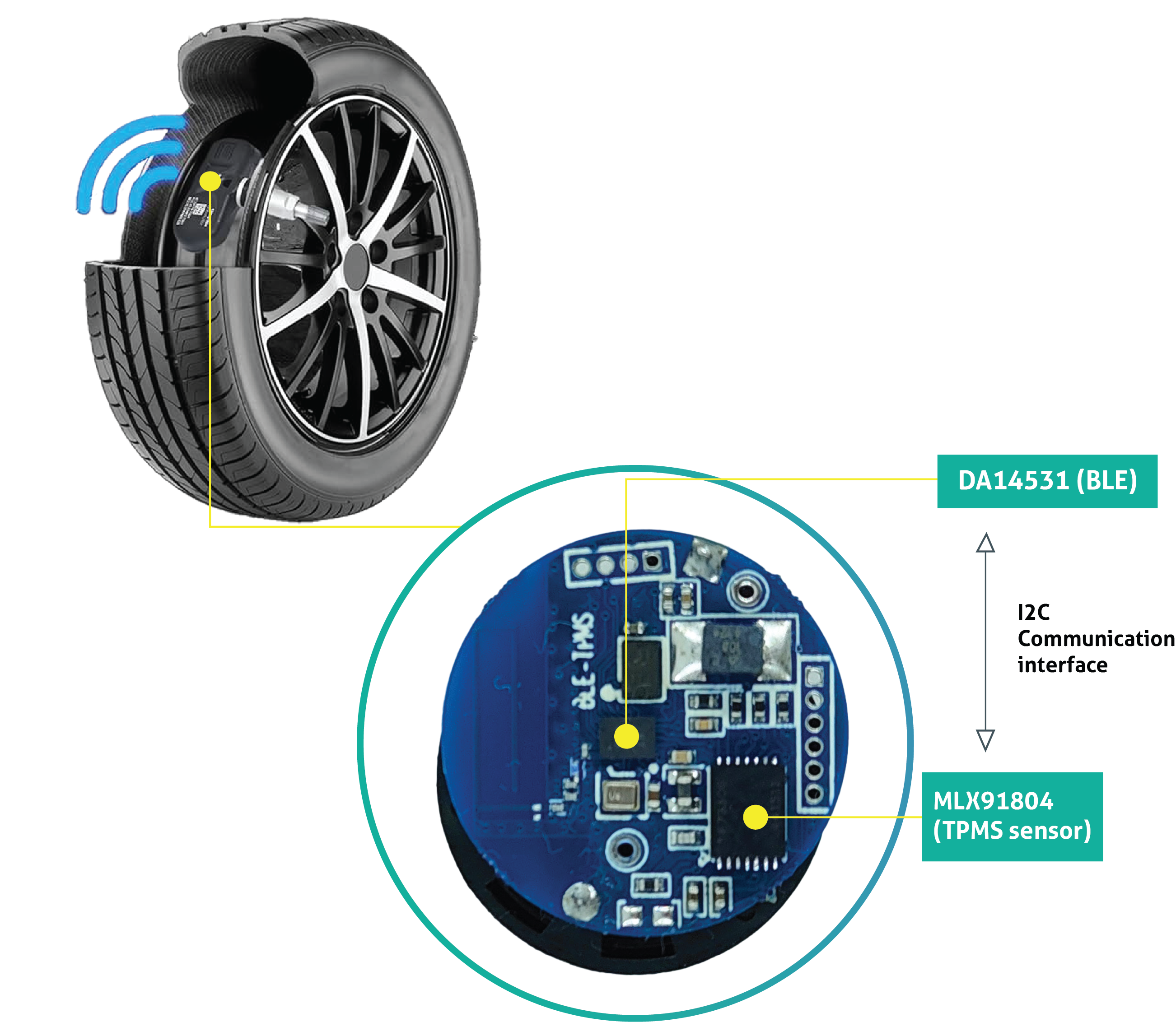

TPMS(Tire Pressure Monitoring Systems)


Description

A Tire Pressure Monitoring Systems (TPMS) supplies the driver with immediate real time data on the pressure and temperature within the tires. Tpms alerts you when the tire pressure of your vehicle is low or if there is a risk of a flat tire. The objective of a tpms is to prevent traffic accidents, reduce fuel inefficiency, and minimize tire damage caused by low tire pressure by promptly identifying potentially dangerous tire conditions.



Applications

  • Automotive safety
  • Off-road vehicles


Specifications

 OPERATING VOLTAGE
 3.3V
 OPERATING HUMIDITY
 90% Max
 INTEGRATED MULTI-FUNCTION SENSING
 Pressure, Acceleration, Temperature And Voltage
 DIFFERENT PRESSURE RANGES UP TO 1,400 KPA
 Down To ± 4 Kpa Accuracy And 0.2 kpa Resolution
 OPERATING FREQUENCY
 Bluetooth Low Energy 5.0, 2400MHz-2483.5MHz
 TRANSMISSION POWER
 2.5dBm Max
 RECEIVER SENSITIVITY
 < -85dBm
 INTEGRATED MULTI-AXIS ACCELEROMETER (X, Z OR XZ)
 Up To 700g Measurement Range
 BATTERY LIFE
 2-3 Years

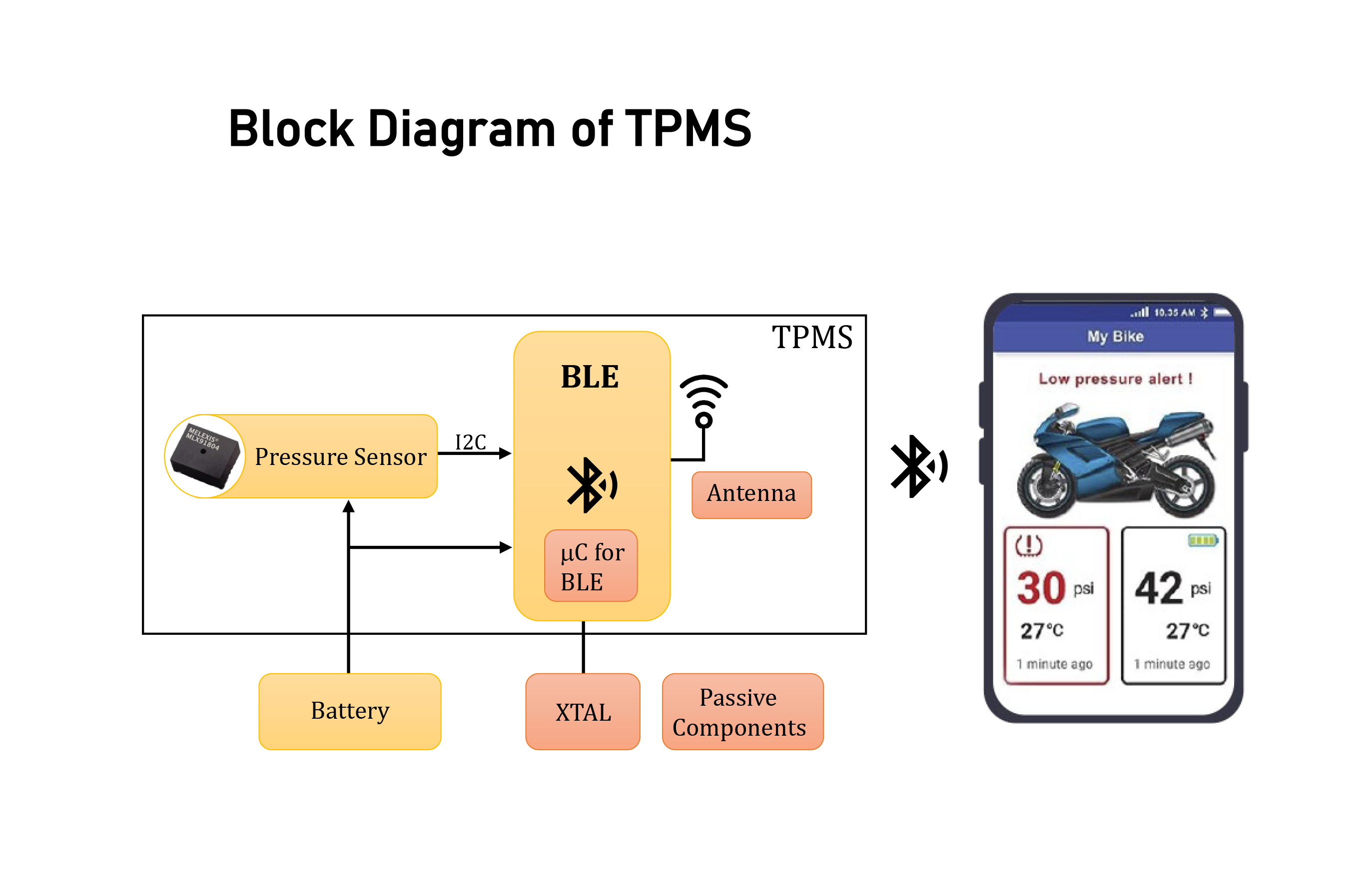

Block Diagram
