SEQUENTIAL LED INDICATOR


Description

The Sequential LED Indicator Demonstrated Here Is Built Around Renesas RL78-F12 Microcontroller, and Taiwan Semiconductor CCR For Individual Light Control.


Features

  • Simple & Robust Design.
  • Operating Voltage: 10V-21V.
  • LED Current Upto 200mA.
  • Battery Reverse Protection.
  • Sequential Time Can Be Adjustable Easily
  • Production Friendly Compared To Analog Sequential To Match The Sequence Time
  • No Of Sequence Can Be Added Upto 16.
  • Sequential Animation Can Be Alter Easily.
  • Synchronise Can Be Done For Front And Rear Indicator


Applications

  • Automotive lighting
  • Safety and warning systems

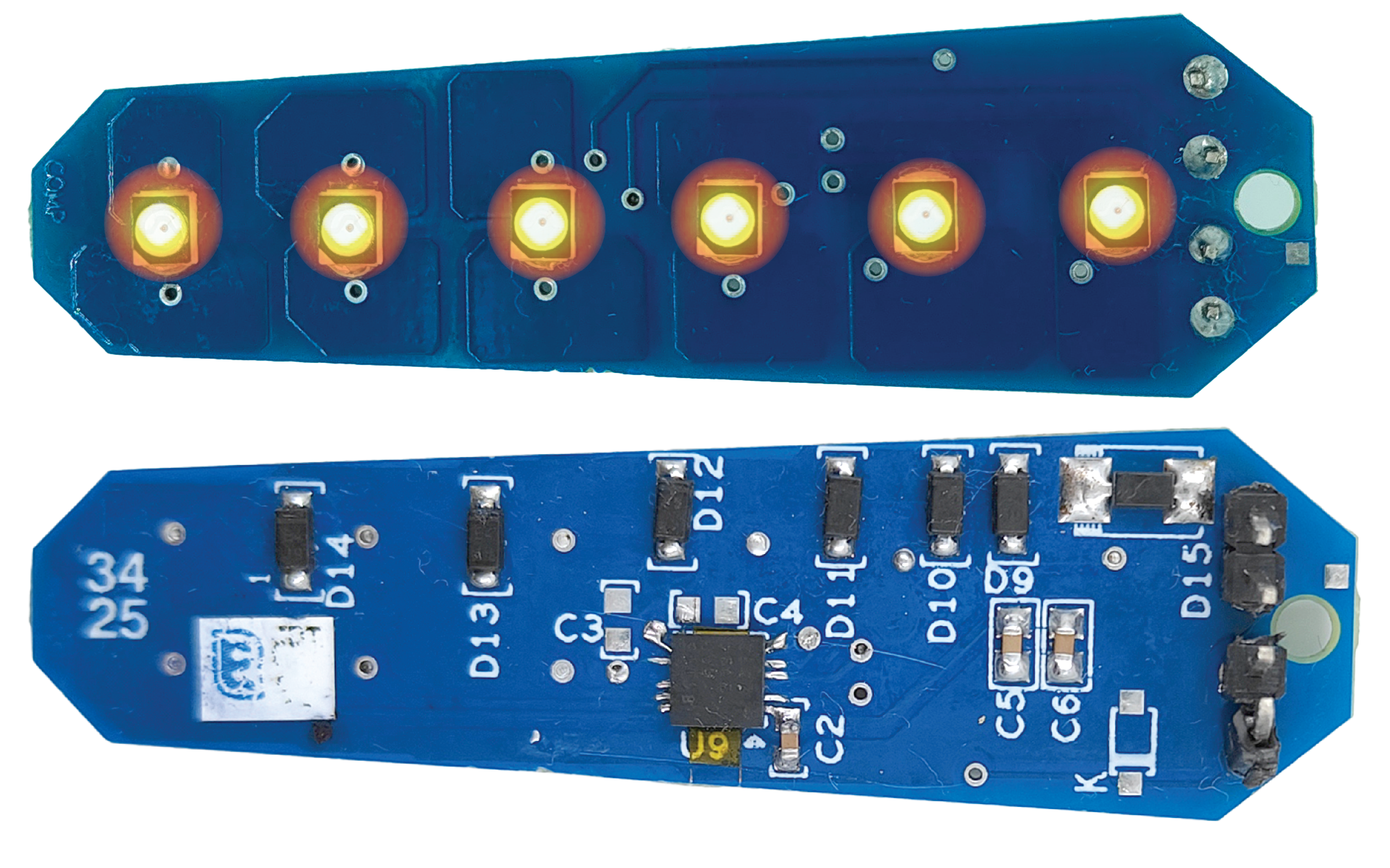

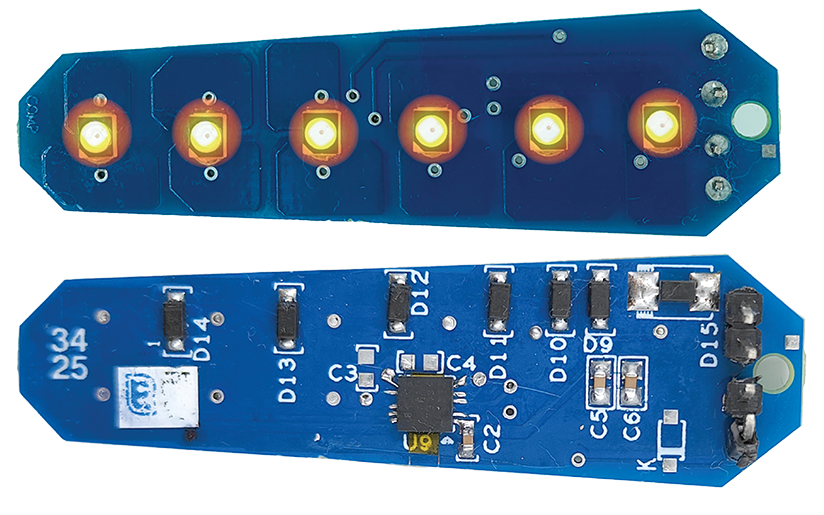

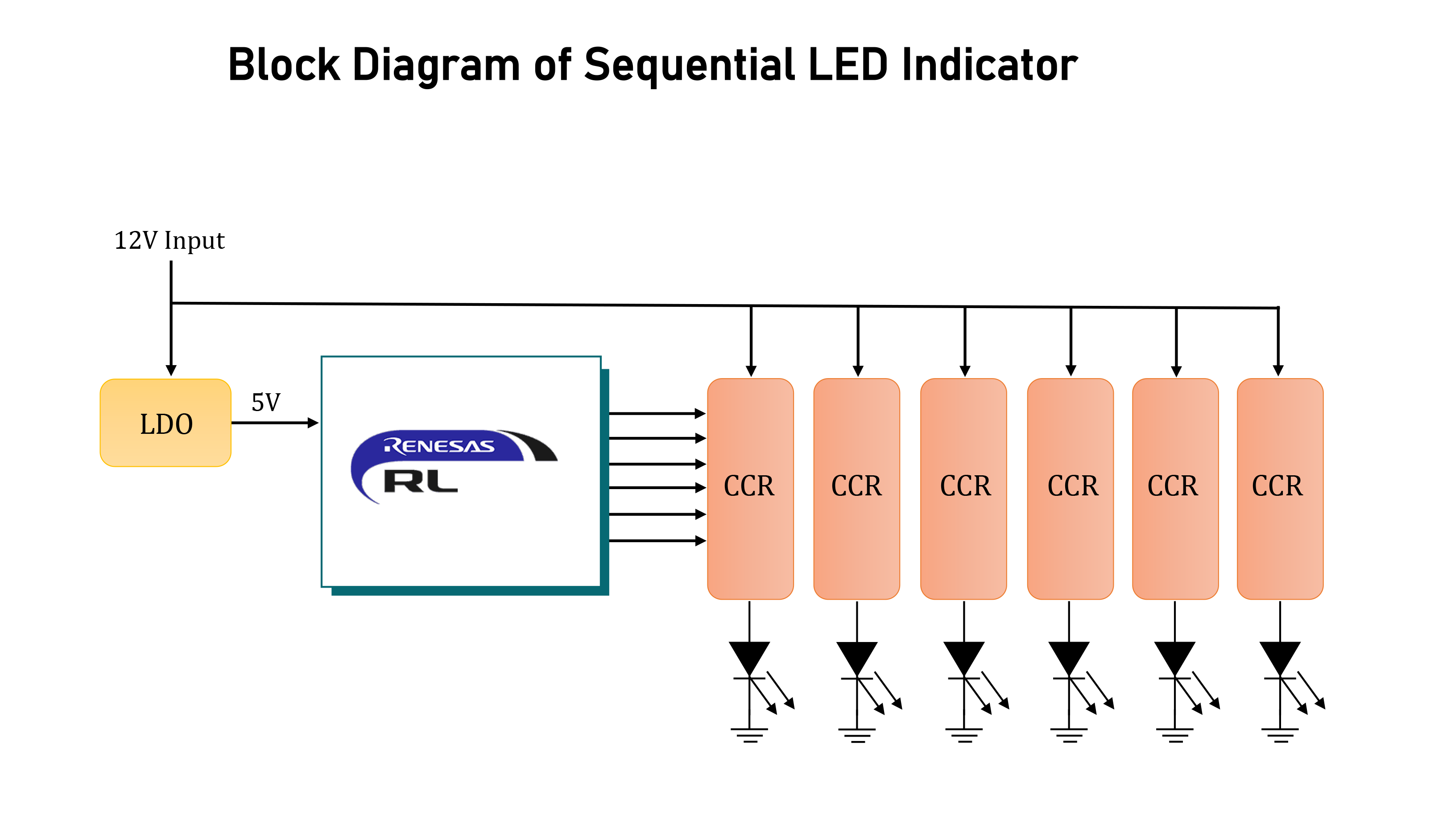

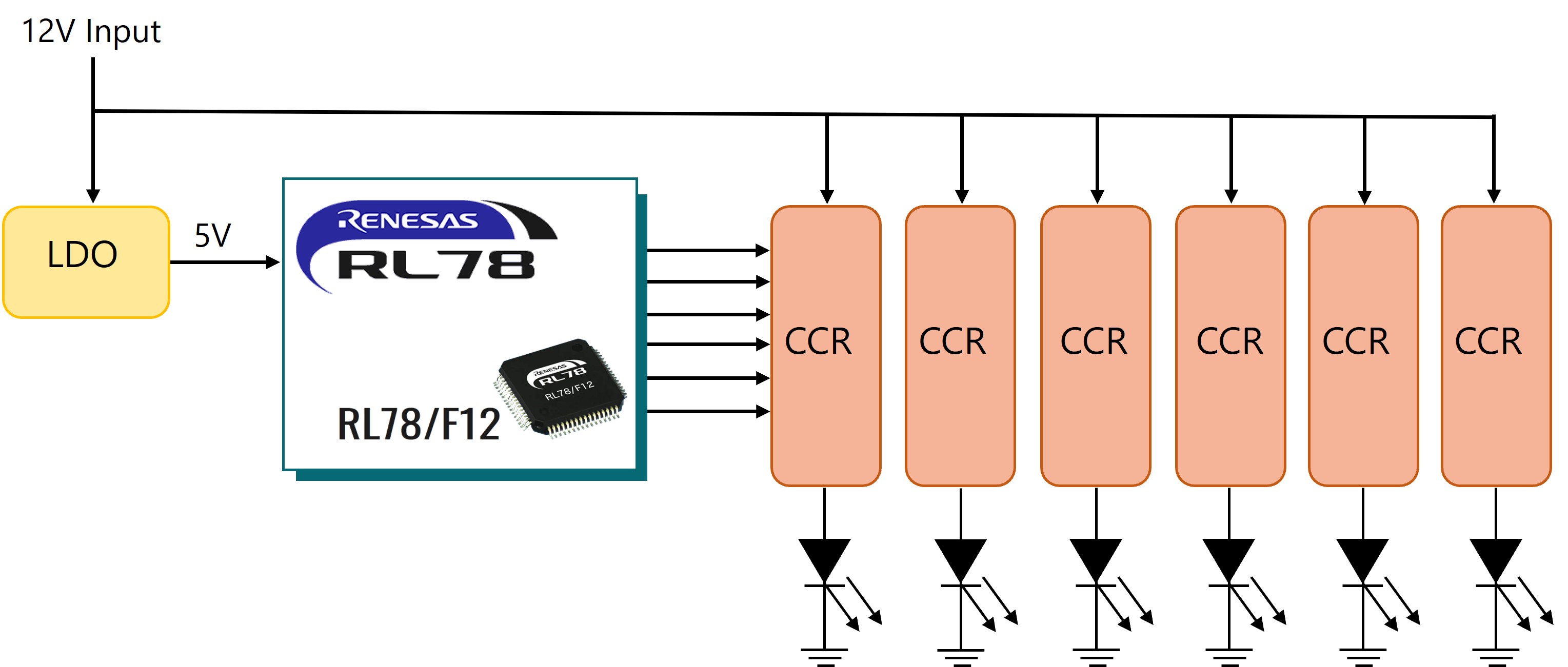

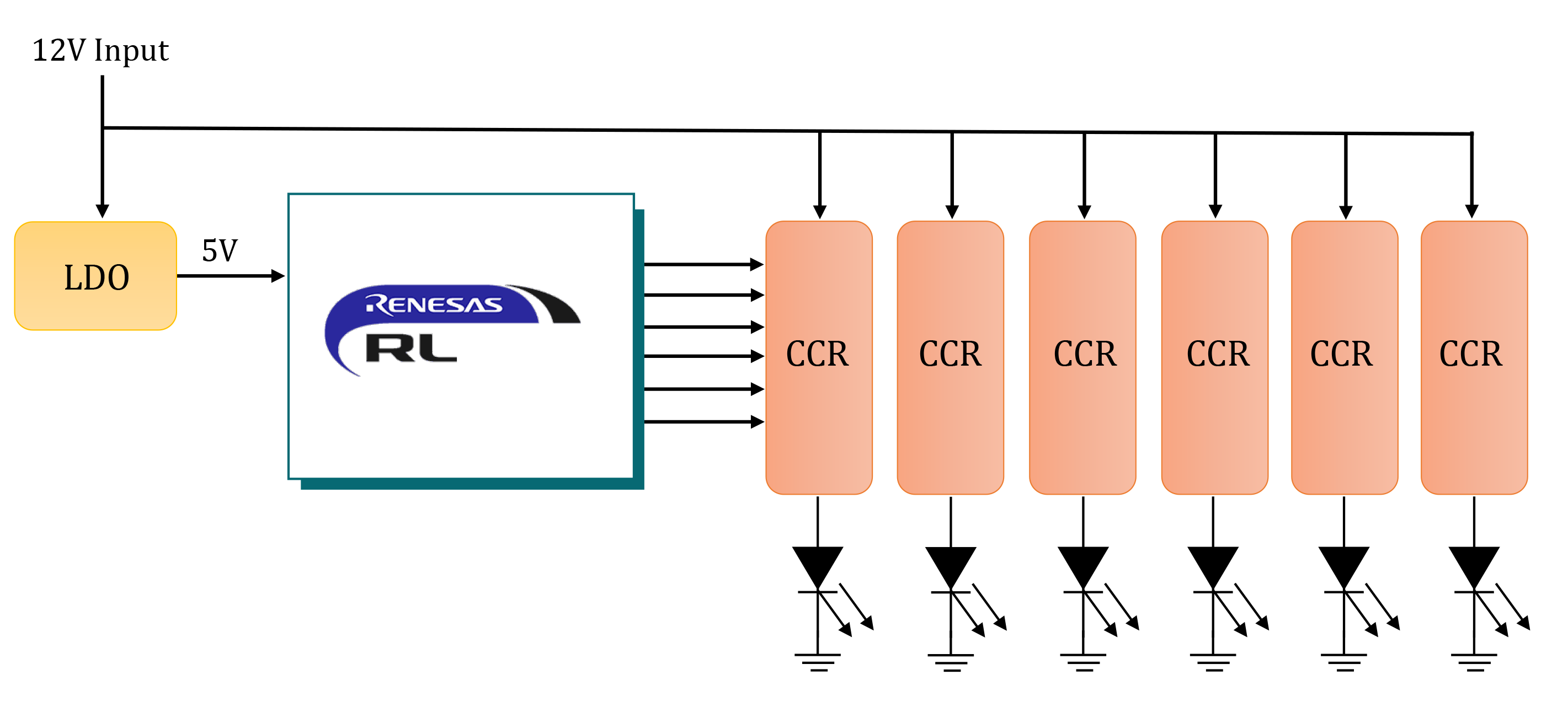

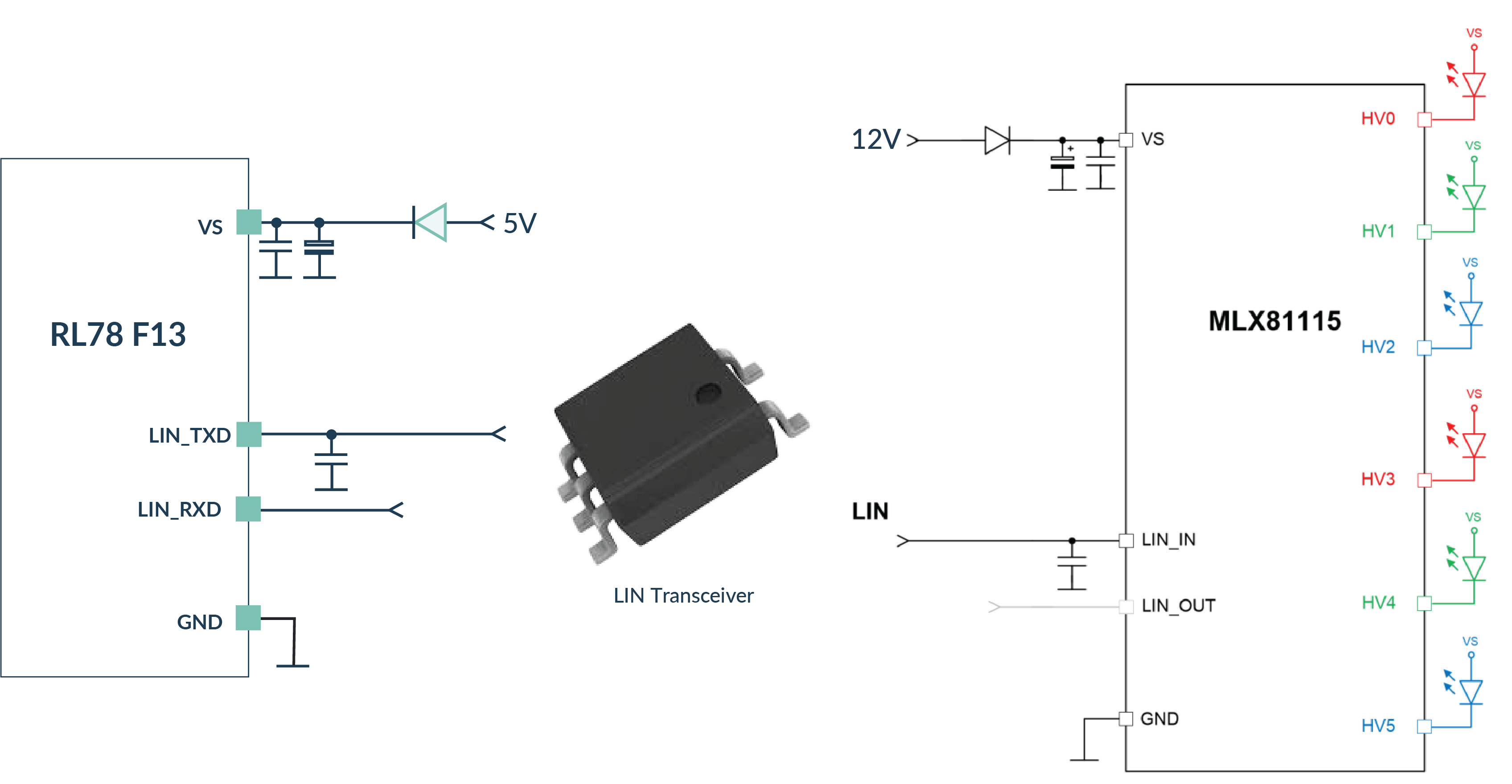

Block Diagram
