RA6M4 - SMART CLUSTER


Description

The 2-wheeler smart cluster integrates technology, connectivity, and intelligent functionalities to deliver an enriched riding experience. This design has wireless module for communicating with smartphones.It provides essential data, connectivity choices, and safety elements, all within a streamlined and user-friendly interface tailored specifically for motorcycles. With these features it transforms a traditional cluster into a smart one.

The cluster reference platform come with evaluation versions of Tuxera RNDIS stack, with smaller footprint files system for free RTOS.


MCU

 MCU Renesas RA6M4 - 100Pin 1MB Flash/256KB RAM / 8KB Data Flash
 CORE Cortex M33


Connectivity

 BLUETOOTH Dialog DA14531 - BT 5.1
 GSM Quectel LTE Module
 GNSS  GPS GLONASS or GPS IRNSS


Hardware

 LCD 5"/7" EBN Display
 MEMORY QSPI Flash 64MB
 DISPLAY EBN Module with 12C Interface
 GSM INTERFACE UART
 CAN (BD41041FJ)  AEC-Q100 Qualified Transmission Rate of 40kbps to 1Mbps
 BLUETOOTH (DA14531) UART Interface
 ALS Ambient Light Sensor with IR LED
 USIM x2, Support 1.8/2.95V (U)SIM Cards, with (U)SIM Card Detection Function
 GYRO & ACCELEROMETER (LSM6DS3TR)  16-bit Digital Triaxial Accelerometer And Gyro Sensor


Software

 Renesas RA6M4 IDE E2 Studio/E2 Studio, Azure RTOS, FREE RTOS
 Dialog Keil, IDE

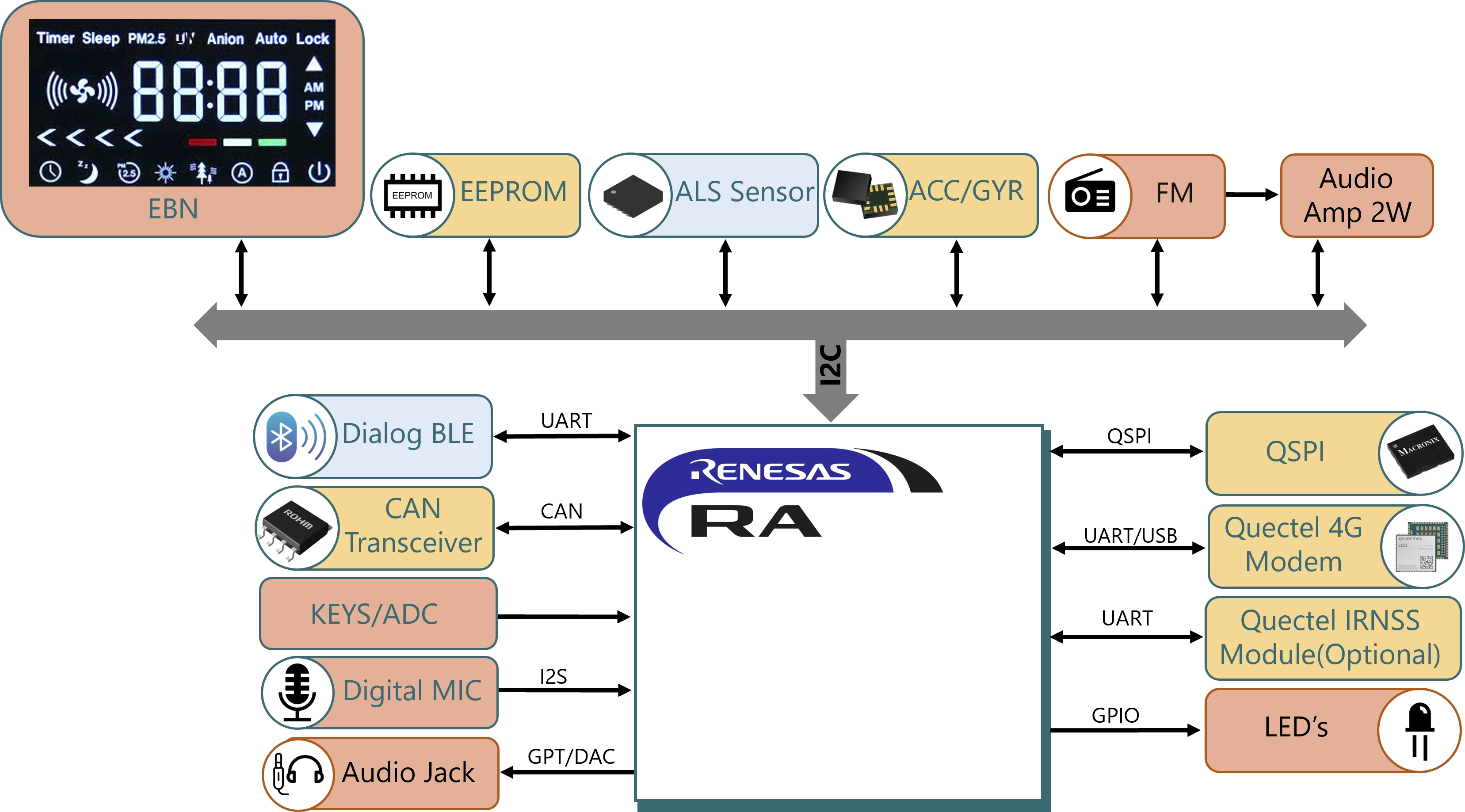

Block Diagram
