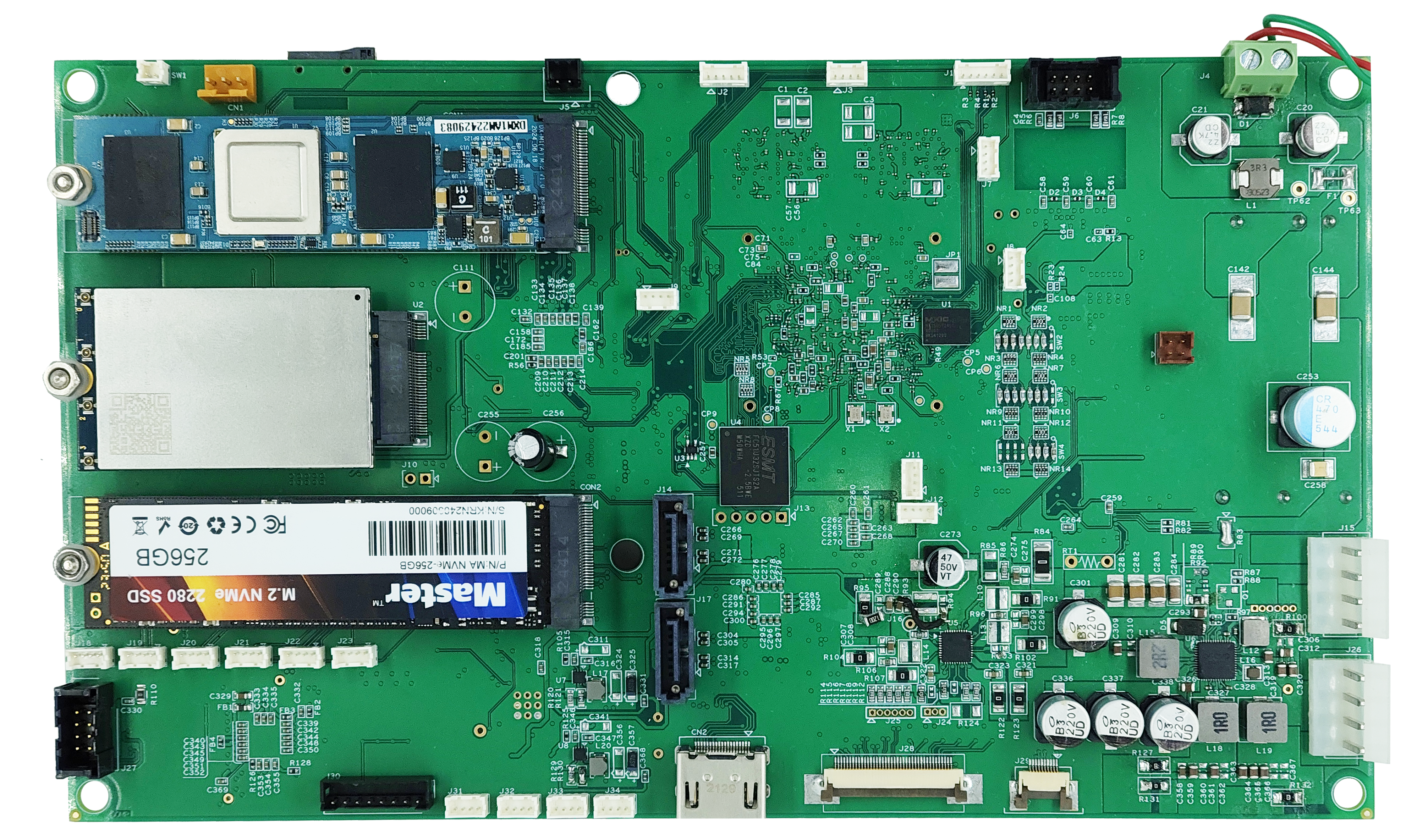

Network Video Recorder(RZ/G2N)


Description

NVR (Network Video Recorder) is a video recording system over network, commonly used for surveillance and security purposes. This device streams security video footage from IP cameras and records the footage in digital format on to a sata hard drive. NVRs Uses wired or wireless network to connect to IP cameras. streams are transferred using TCP or UDP protocol.


Features

  • Renesas RZ/G2N Two 1.5-GHz ARM® Cortex®-A57 MP Core™ cores
  • Runs Linux Kernel 5.10 with Yocto Root File System (RFS)
  • Streams video from IP cameras over wired network that can be configured upto 16 channels
  • Uses real time streaming protocol (RTSP) based on client server architecture
  • Uses H.265 and H.264 decoder and wayland sink with 4K resolution
  • Simultaneously stores streamed data onto hardisk through SATA interface
  • Selectively playback stored streams
  • Uses open source gstreamer plugins pipeline to parse and decode the RTSP Packets
  • Capable of rendering videos from 16 tiles onto single window that can be monitored over HDMI Interface
  • Can be used for basic analytics using open CV algorithms
  • Supports QT for GUI application development
  • Supports scaling
  • MCU with OTP area for network MAC ID
  • 6-Port USB smart hub with:

       - Five standard USB 3.2 Gen 2 downstream ports

       - One standard USB 2.0 downstream port


Software Environment

  • Host setup: Ubuntu 20.04 LTS
  • Open source Gstreamer version 1.0
  • Yocto SDK RZ/G verified Linux package for 64 bit kernel, BST version 3.0.X
  • Software stacks supported:

        - Web browser: Firefox

        - Web server: Apache / Lighttpd

        - Backend script: PHP

        - RDBMS support: MySQL / SQLite


Applications

  • Public Safety
  • Traffic Monitoring
  • Industrial Monitoring
  • Video Surveillance


NVR Hardware Features

  • It uses all automotive type connectors
  • Operating input volatage: 18-24VDC
  • Battery-14.8V, 2000MHz, 3hr
  • MAC ID storing and secure chip
  • STQC approved secure element S5D9
  • Magnetics on board
  • Audio codec DA7218 for 2mics
  • Stereo jack speaker out
  • TLV320AD510 for 4 mic out
  • HDMI out
  • Isolated IO ports-4 pins
  • SATA interface
  • Display HDMI / LVDS with cap touch
  • 1Gbps Ethernet
  • USB 3.0, USB 2.0
  • Mini-PCIE for Quectel EC25 modem / mini SATA
  • 8 GPIO non isolated pins
  • 2 ports IIC, 3UART RS232 port, 1 CAN 2.0


USB HUB Card Features

  • Supports two 5G modem with M.2 connector
  • SD card
  • USB 3.0-SATA connection
  • USB 3.0-ethernet 10/100/1000 Mbps
  • Power supply 9-36V
  • USB Type-B (host)


Data Aggregator Features

  • Data Aggregator can accomodate three 4G /5G modem with third party data aggregator software
  • Input uplink steam through gigabit ethernet
  • Wi-Fi MIMO for fast throughput
  • Supports MIMO Wi-Fi antenna (YEWN004AA) and 9 in 1 combo antenna (YB0027AA)
  • High accuracy GPS with 1cm triangulation and tracking
  • On-Board temperature and humidity sensor
  • Modem Support: LTE Cat 12 UE - LTE Cat UEs are based on LTE Advanced (LTE-A) technology with support for a data rate of 603.0 Mbit/s on the downlink and 102.0 Mbit/s on the uplink. They utilize MIMO (Multiple Input - Multiple Output) and Carrier Aggregation to deliver higher data rates and support 2- or 4-layer spatial multiplexing in downlink (DL).
  • 5G modems can have a range of speeds, from 10 to 20 gigabits per second (Gbps) at their peak, to 100–300 Mbps on average.

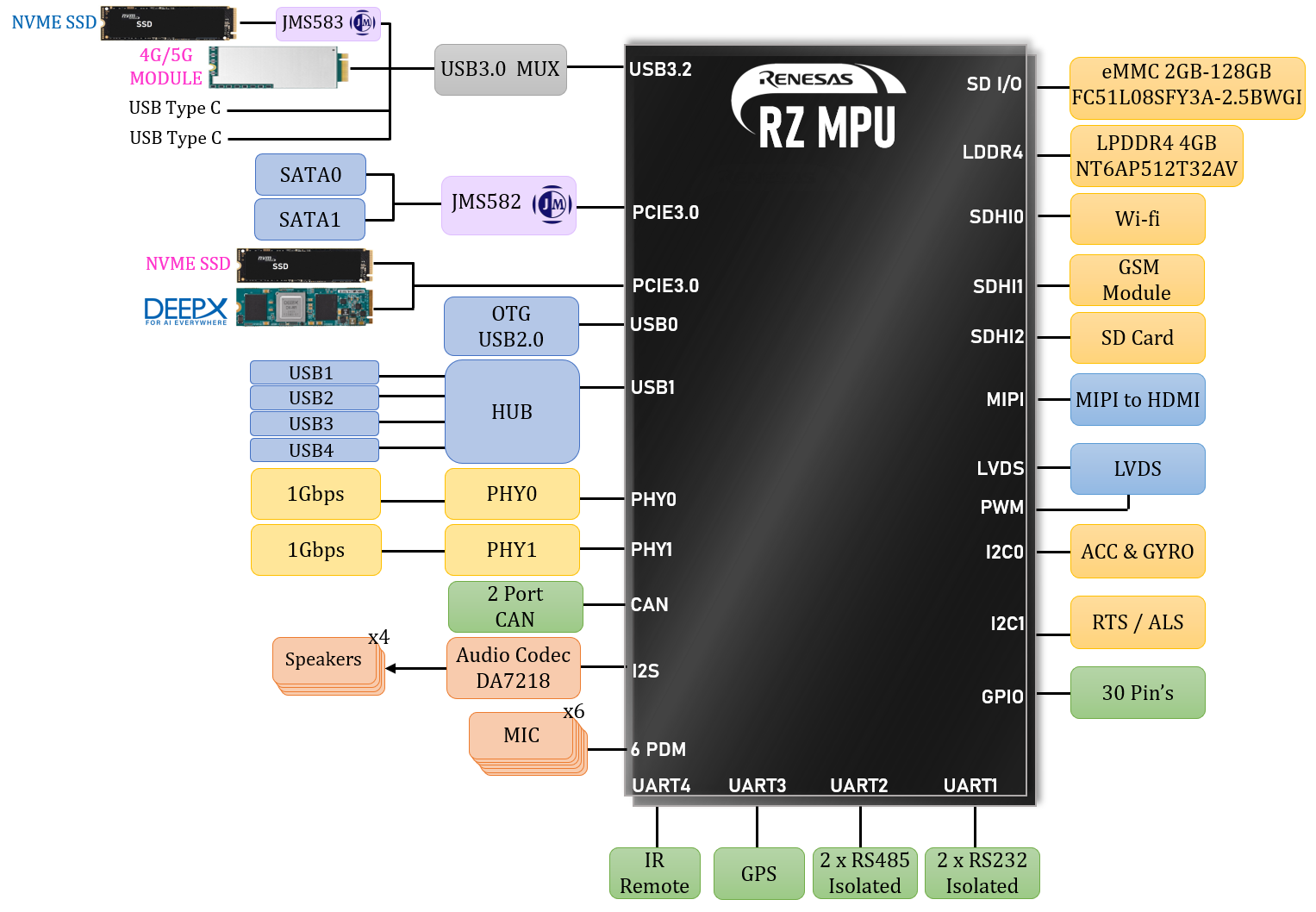

Block Diagram
