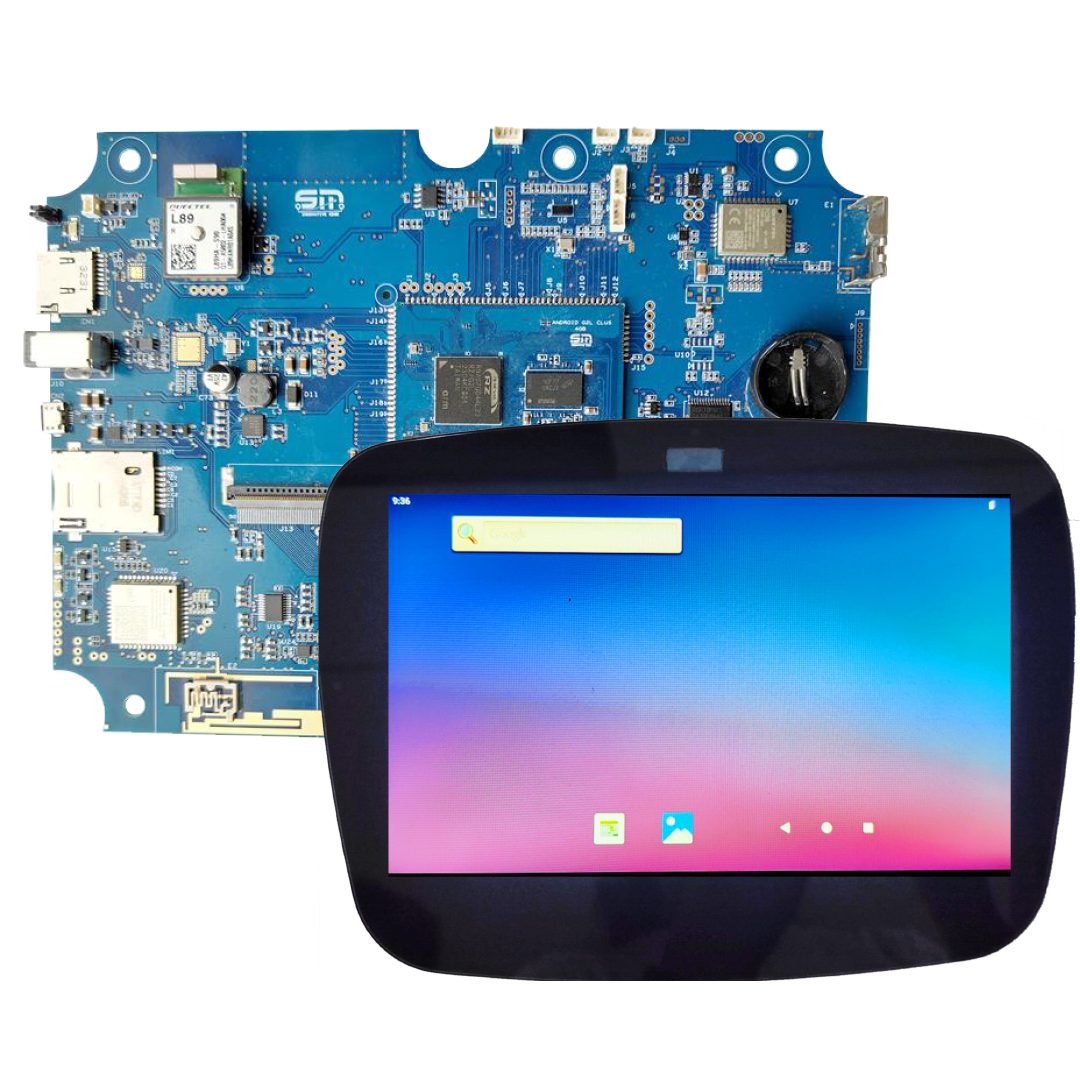

RZ/G2L ANDROID / LINUX CLUSTER

Description

An Android cluster is a digital dashboard powered by the Android operating system, commonly used in vehicles, including two‑wheelers. It displays real‑time information such as vehicle speed, navigation, diagnostics, and smartphone connectivity features. By integrating advanced interfaces and smart functionality, the Android cluster enhances rider convenience, situational awareness, and overall safety.

Features

• Processor – General-Purpose MPU with Dual-Core Arm Cortex-A55 CPUs and Single-Core Cortex-M33 CPU with 3D Graphics and Video Codec Engine
• eMMC 32GB
• DDR4 2GB (4GB optional)
• SD Card Interface
• 7’’ TFT LVDS Interface – Touch CTP
• ALS Ambient Light Sensor – RTR-0521RS
• GSM - LTE EC800K
• GPS, BDS, Gallieo and GLONASS
• Wifi 5 + BLE BT5.0
• BLE Standalone - DA14531(Optional)
• Audio Codec - DA7218 Stereo Codec with Single ended headphone driver
• Accelero and Gyro - SMI230
• MIPI Camera AHL Interface (Encoder RAA279971 and Decoder RAA279972)
• CAN Interface RL78/F14 - UART output for RZ/G2L
• CAN Communication: OBD Interface, BMS, etc…
• Hardware Indicators (Left/Right Turn)
• Side Stand Indicator
• Head Light Switch
• Throttle Pulse/ADC

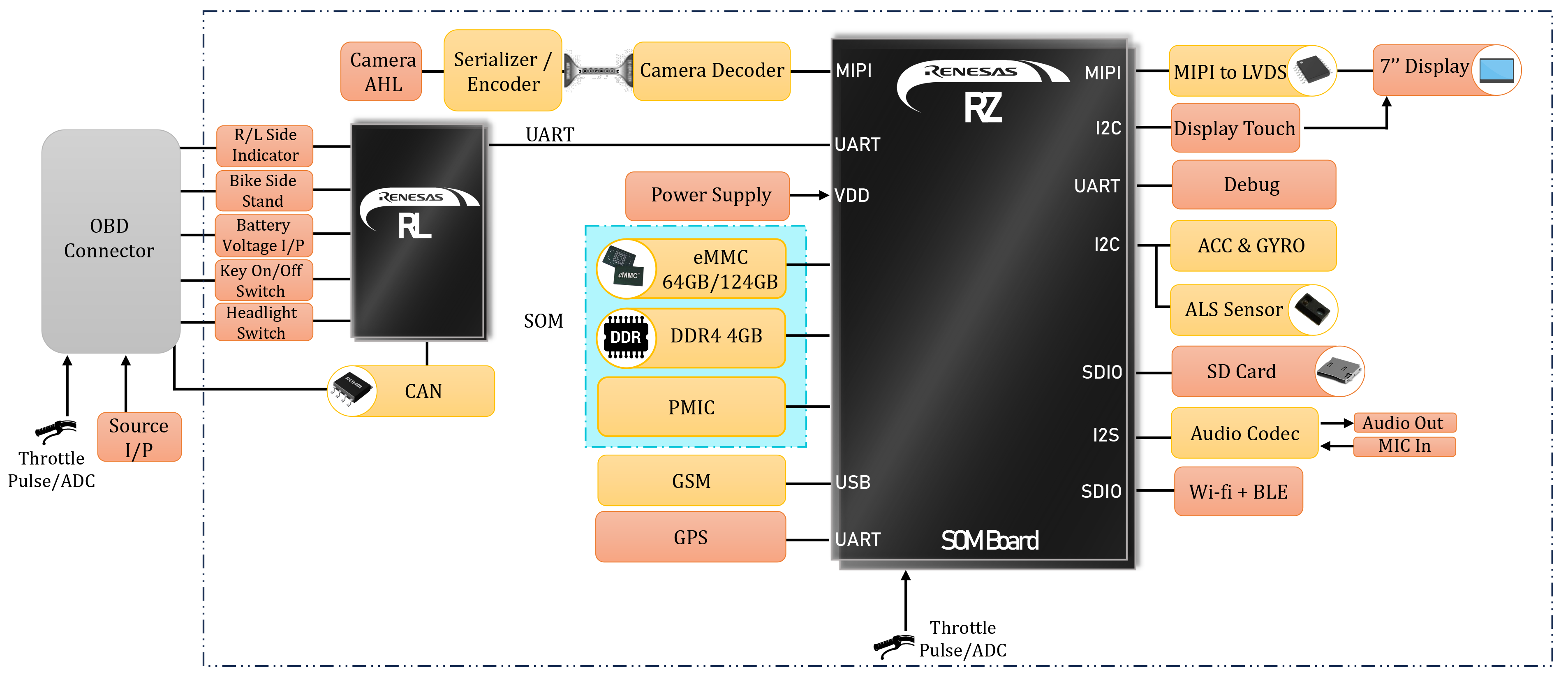

Block Diagram
