AGGREGATOR

Description

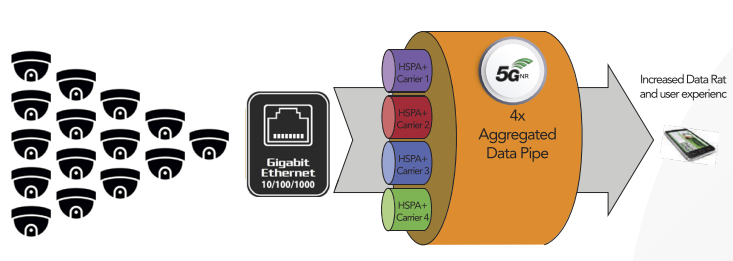

An aggregator is a device or system that collects and consolidates data from multiple communication channels—such as cellular, DSL, or broadband wireless sensor networks (WSNs)—into a unified format, enabling efficient transmission of large volumes of data.

Features

• Accommodate three 4G / two 5G modem with third party data aggregator software.
• Input uplink stream through Gigabit Ethernet
• Wi-Fi MIMO for fast throughput.
• Supports MIMO Wi-Fi antenna (YEWN004AA) and 9 in 1 combo antenna (YB0027AA) for 4G/5G networks.
• High accuracy GPS with 50cm triangulation and tracking.
• On-Board temperature and humidity sensor.

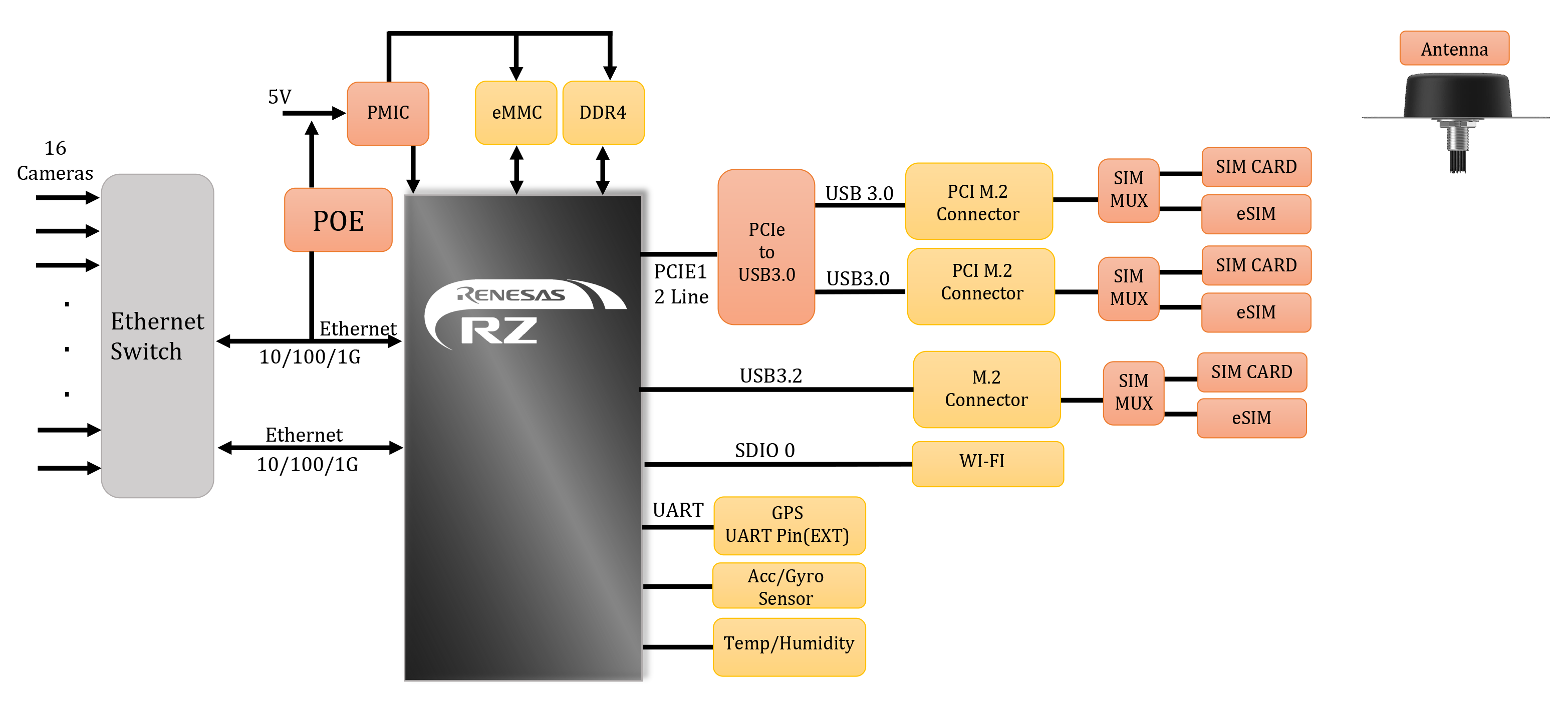

Block Diagram
